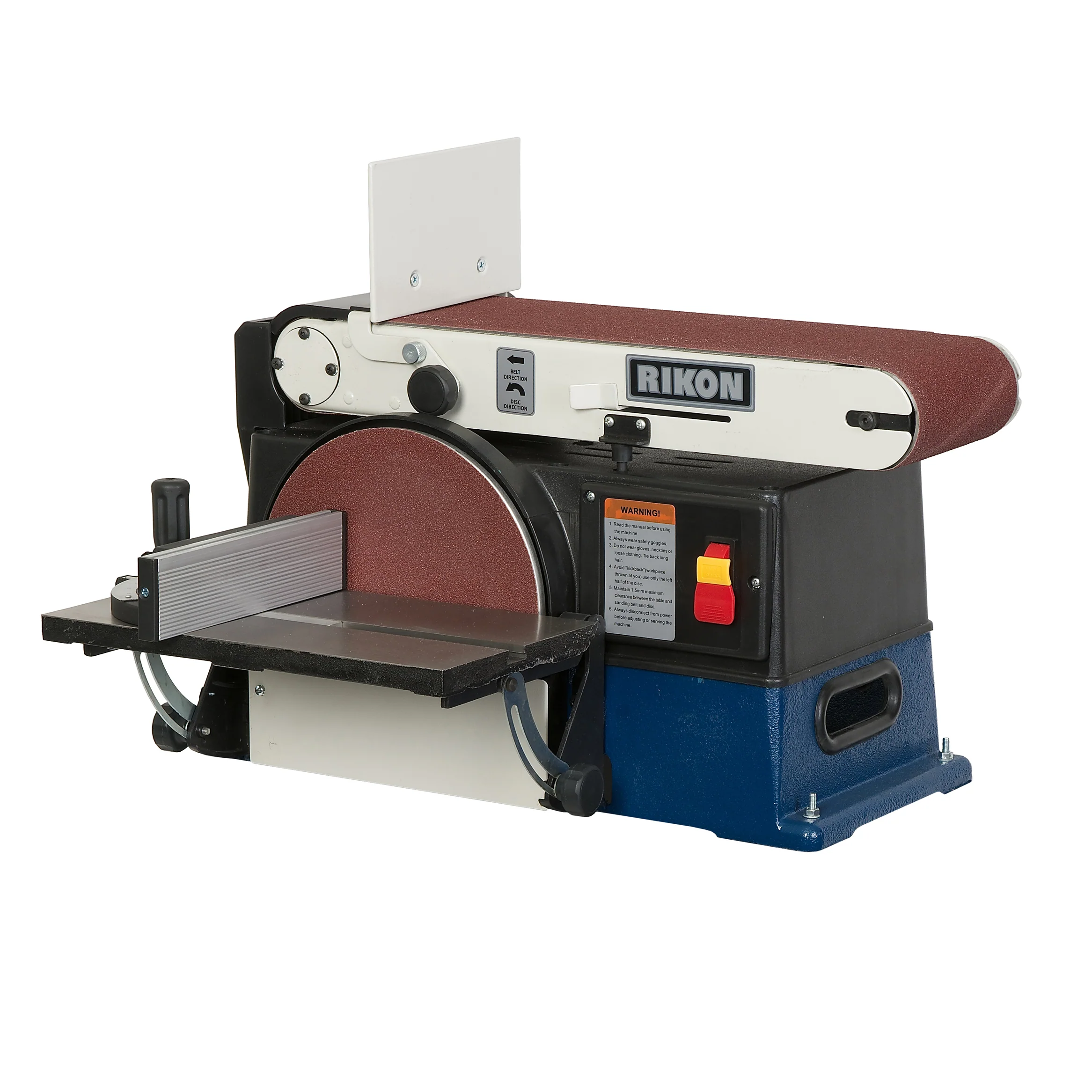

RIKON 6″ X 48″ Belt / 10″ Disc Sander

6” x 48” Belt / 10” Disc Sander #50-120 is a large, robust sander, that shines where the majority of sanding would be done on the wide abrasive belt. The belt frame adjusts in any position from horizontal to vertical to meet your sanding needs. The belt’s support fence can be removed for full access to the whole length of the belt, and with the sanding disc positioned below the belt surface, it will not interfere with belt sanding of wide projects that overhang the frame. The large 10” diameter disc is very useful for edge work. Machine features heavy cast iron base, quick release belt lever, cast iron tilting table and miter gauge.

• Cast Iron Steel Construction.
• Belt Size 6″ x 48″.
• Belt Tilts 0 – 90°.
• 10″ Disc Diameter.
• INCLUDES: Work Support Table, Miter Gauge, Carrying Handles, 1 – 80 Grit Disc and 1 – 60 Grit Belt.



SPECIFICATIONS

Motor Horsepower	3/4 HP
Motor Amps	10
Motor Volts	110V, 60 Hz
Body Construction	Cast Iron
Stand Included	No
Disc Table Size	14” x 7-7/8”
Disc Table Tilt	0° to 45°
Disc Table Material	Cast Iron
Miter Gauge	Included
Miter Gauge Slot	3/4” x 3/8” T-Slot
Belt Table Size	7-7/8” x 4-3/4”
Belt Size	6” x 48”
Belt Speed	2,030 SFPM
Belt Tilt	0° – 90°
Disc Diameter	10” PSA
Disc Speed	1,720 RPM
Overall Height	16”
Overall Width	28-1/4”
Overall Depth	17-1/4”
Overall Base Size	22” x 10-1/4”
Dust Ports	1@2-1/2”
Overall Net Weight	92 lbs.
Warranty	5 Years
