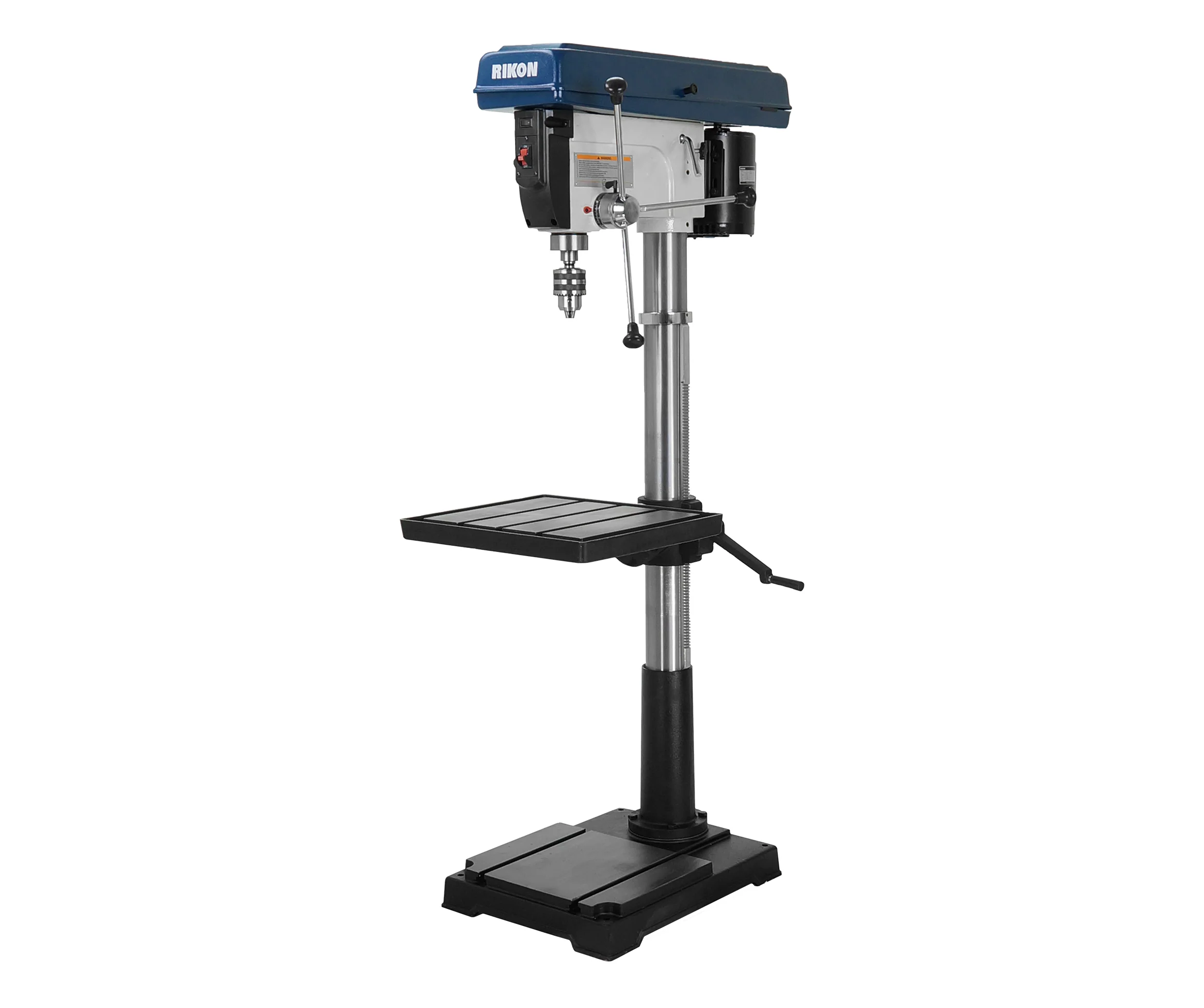

RIKON 20″ Floor Drill Press

20” Floor Drill Press #30-240 is the largest model, valued by production shops for its robust design, extra-large table, chuck, base and wide speed range. This machine gives serious, basic operation that will take the heavy workloads demanded of it.

• Powerful 1 HP TEFC Motor
• 12 Spindle Speeds
• Clutch Depth Stop
• Cast Iron Table



SPECIFICATIONS

Motor Horsepower	1 HP TEFC
Motor Amps	13.5
Motor Volts	120V, 60Hz
Motor RPM	1,720
Swing	20”
Chuck Size	3/4”
Chuck Taper	JT3
Drilling Capacity	1”
Spindle Travel	4-3/4”
Spindle Taper	MT3
Head Rotates	360°
Head Tilts	-
Speeds	12
Speed Range (RPM)	180 – 3,865
Quill Diameter	3”
Table Dimensions	16-1/2” x 18-3/4”
Table Tilts	90°
Table Rotates	360°
Maximum Chuck to Table	24-9/16”
Maximum Chuck to Base	43-13/16”
Column Diameter	3-5/8” (92mm)
Overall Height	68”
Overall Base Size	22-3/4” x 16-1/2”
Overall Net Weight	250 lbs.
Warranty	5 Years
