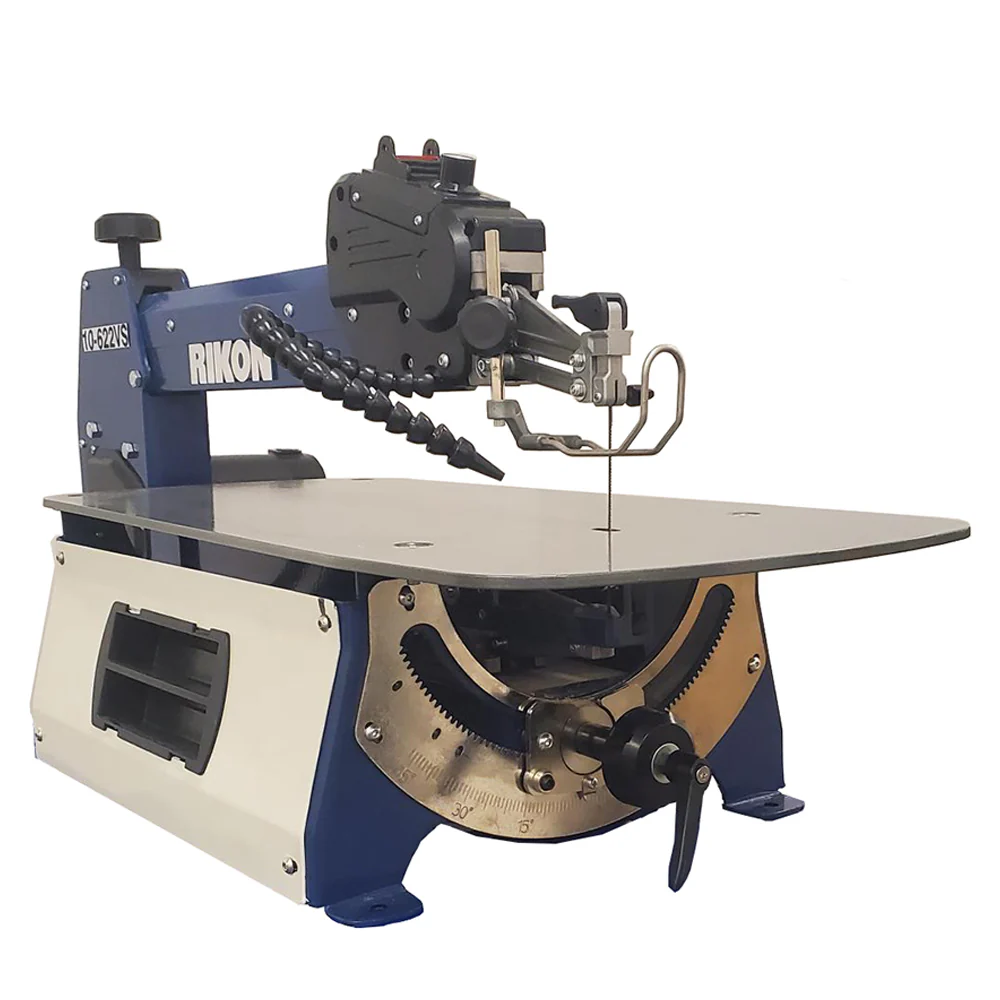

RIKON 22″ Variable Speed Scroll Saw

The thin, working blade allows the material being cut to be freely turned in tight arcs, unlike any other power saw. The DC motor provides variable operating speeds, so adjusting the blade’s cutting action to different materials is easily done with just a twist of the dial. The saw’s extra deep 22” throat and large steel table give extra access and stability when sawing large projects. Table also tilts left and right for making angled cuts. Machine uses 5” long plain end (pinless) blades. Includes sturdy, all-metal base, adjustable built-in dust blower nozzle, lower dust port with vacuum attachment and blade/tool storage in the base.

• Extra large finished steel table measures 25-5/8″ long x 13-3/4″ wide and tilts -30° Left to 45° Right for angled cutting. 36 holes surrounding the main hole for the blade aids in dust removal when the saw is used with a vacuum.
• Reliable 1.6A, 120V, 60Hz motor with Electronic Variable Speeds allows speeds from 550 to 1550 strokes per minute (SPM).
• Ideal for setting the best cutting speeds for working a variety of materials – woods, plastics, soft metals etc.
• Maximum cutting height is 2″. Saw’s cutting up/down stroke is 3/4″.
• Dust port diameter is 1-3/8″ (35mm) O.D. and includes a 90° Dust Hose fitting attachment.
• Base to table height is 7-9/16″ (192mm).
• Optional Stand 13-622
• Optional Foot Switch 99-600



SPECIFICATIONS

Motor Volts	120V, 60Hz
Motor Amps	1.6
Electronic Variable Speed (SPM)	550 - 1,550
Pinless Blade Length	5” / 130mm
Maximum Cutting Height	2“ / 50mm
Stroke	3/4” / 20mm
Throat Depth	22” / 560mm
Table Size (LxW)	.25-5/8” x 13-3/4” / 650 x 350mm
Table Tilting	30° Left, 0°, 45° Right
Base to Table Height	7-9/16“ / 192mm
Dust Port Diameter (O.D.)	1-3/8” / 35mm
Maximum Sound Level (at 0.3m / 11.8“)	<80dB
Overall Size (LxWxH)	34"x14-1/8"x16-9/16" / 865x360x420mm
Base Size (approx. LxW)	18-5/8” x 13-1/4” / 475 x 335mm
Net Weight	68 lbs.
