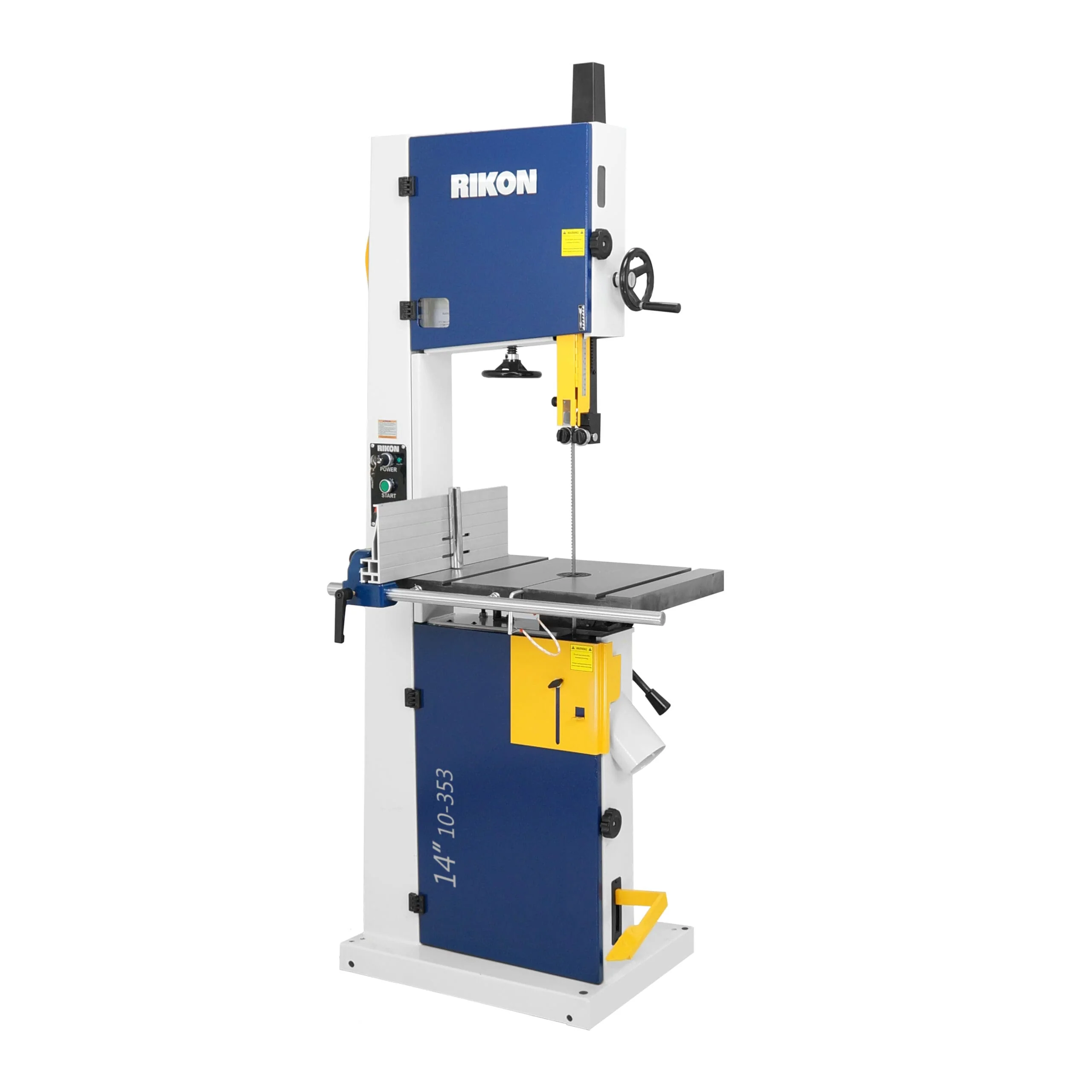

RIKON 14″ Professional Band Saw

14” Bandsaw #10-353 features an impressive 3HP motor and the largest cutting capacity in this model range, which makes this saw ideal for use in re-sawing lumber, as well has handling normal shop work. Designed with extra user friendly and safety features – Patent Pending tool-less blade guide system, quick-adjust fence system and quick-lock trunnion system for fast table angle setting, plus, a keyed power switch (great for unauthorized use & security), emergency OFF foot switch pedal, door activated emergency stop micro switch, conveniently located blade tension release lever with the tensioning wheel under the top frame, large work table with two miter gauge ‘T’ slots, hinged blade guard, and clear sight windows for easier viewing when adjusting the blades. Includes 6” rip fence with re-saw bar. Requires a 220V 4-wire electrical plug to match your electrical receptacle.

• 14″ Cutting Capacity.
• Patented – Spring Loaded Tool-less Guide System.
• Patented – Quick Adjust Fence System With 6″ Tall Rip Fence.
• Patented – Quick Lock Cast Iron Trunnion System.
• 4,300 FT / MIN.
• Large Cast Iron Table.



SPECIFICATIONS

Motor Horsepower	3 HP TEFC
Motor Amps	13
Motor Volts	220V, 60Hz, 1Ph
Blade Speed	4,300 FT/MIN
Cutting Capacity Height	14”
Cutting Capacity Width	13-5/8”
Blade Width	3/16” – 1”
Blade Length	142”
Table Size	21-1/2” x 15-3/4
Table Left Tilt	-10°
Table Right Tilt	45°
Table Miter Gauge "T" Slot	(2) 3/4” x 3/8”
Table Height to Floor	34-5/8”
Table Fence Size	19-11/16” x 1-3/4" x 6”
Wheel Material	Cast Iron
Blade Guide Type	Spring Loaded
Table Trunnion	Cast Iron
Overall Height	74-1/2”
Overall Width	33-1/2”
Overall Depth	28-1/2”
Overall Base Size	25-1/4” x 18-1/8”
Dust Port	2@4”
Overall Net Weight	315 lbs.
Warranty	5 Years
