Milwaukee SDS-Max Core 48-20-5434

Milwaukee’s 1-piece Carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a Kerf only. The inside core must be removed by the operator before deeper drilling can be accomplished. Use of centering bit 48-20-5495 is recommended (not included). Use drift key 48-20-5497 to remove centering bit from the 1-piece core bit. The 1-piece core bits are available in SDS Max or spline shanks. They come in a variety of diameters ranging from 1-1/2 in. to 6 in. with overall lengths of 11-3/8 in. or 22 in. and a drilling depth of 3 in. The asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The 1-piece design maximizes energy transfer and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.

• Asymmetrical and Alternating Teeth for Faster Material Pulverization
• Optional: Centering Tip to Reduce Bit Walking and Create Exact Spot Drilling
• Thick-Wall Core Body for Durability Even in Large Hammers
• Remove centering bit with drift key 48-20-5497 (not included)

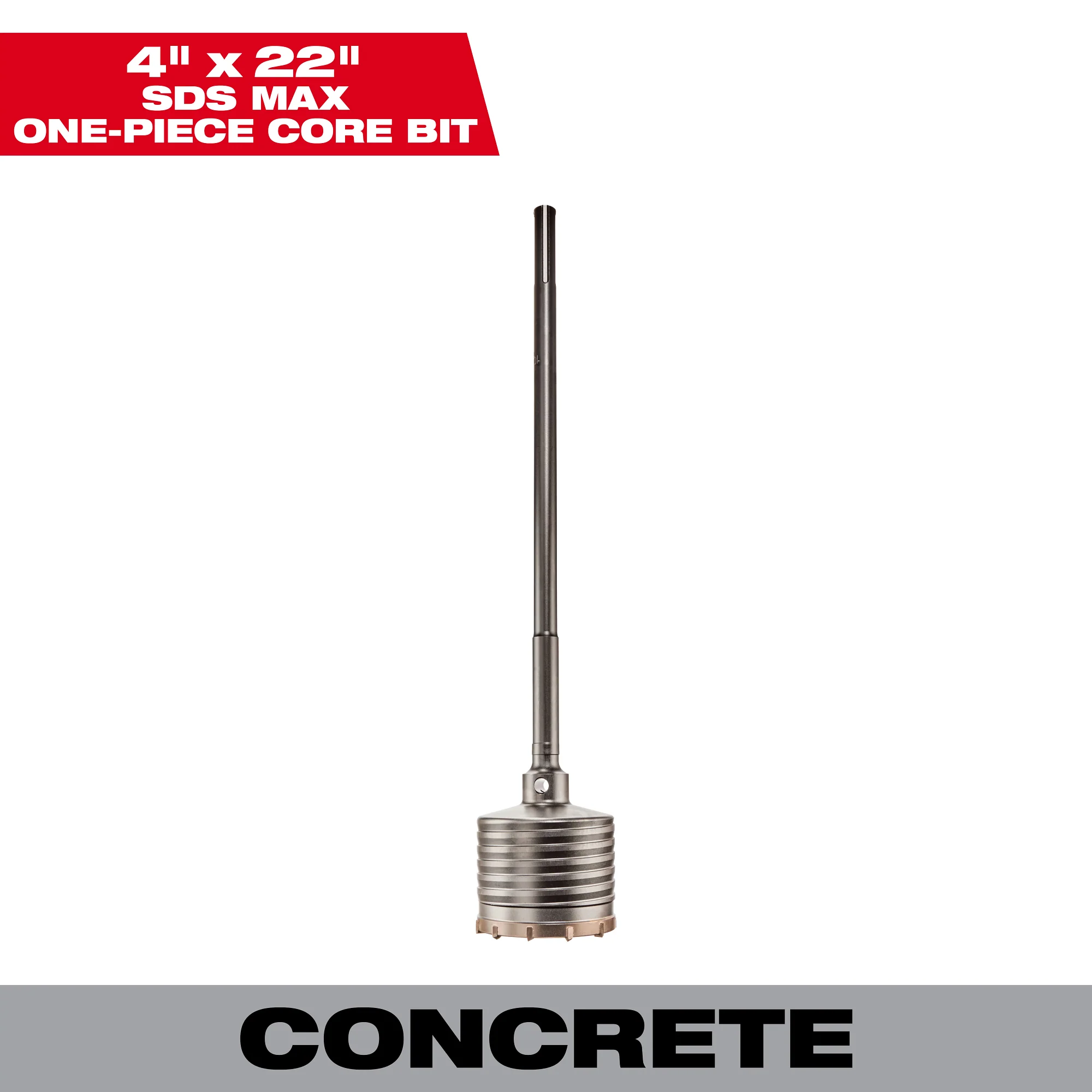

• (1)4" X 22" One Piece SDS Max Core Bit(48-20-5434)
