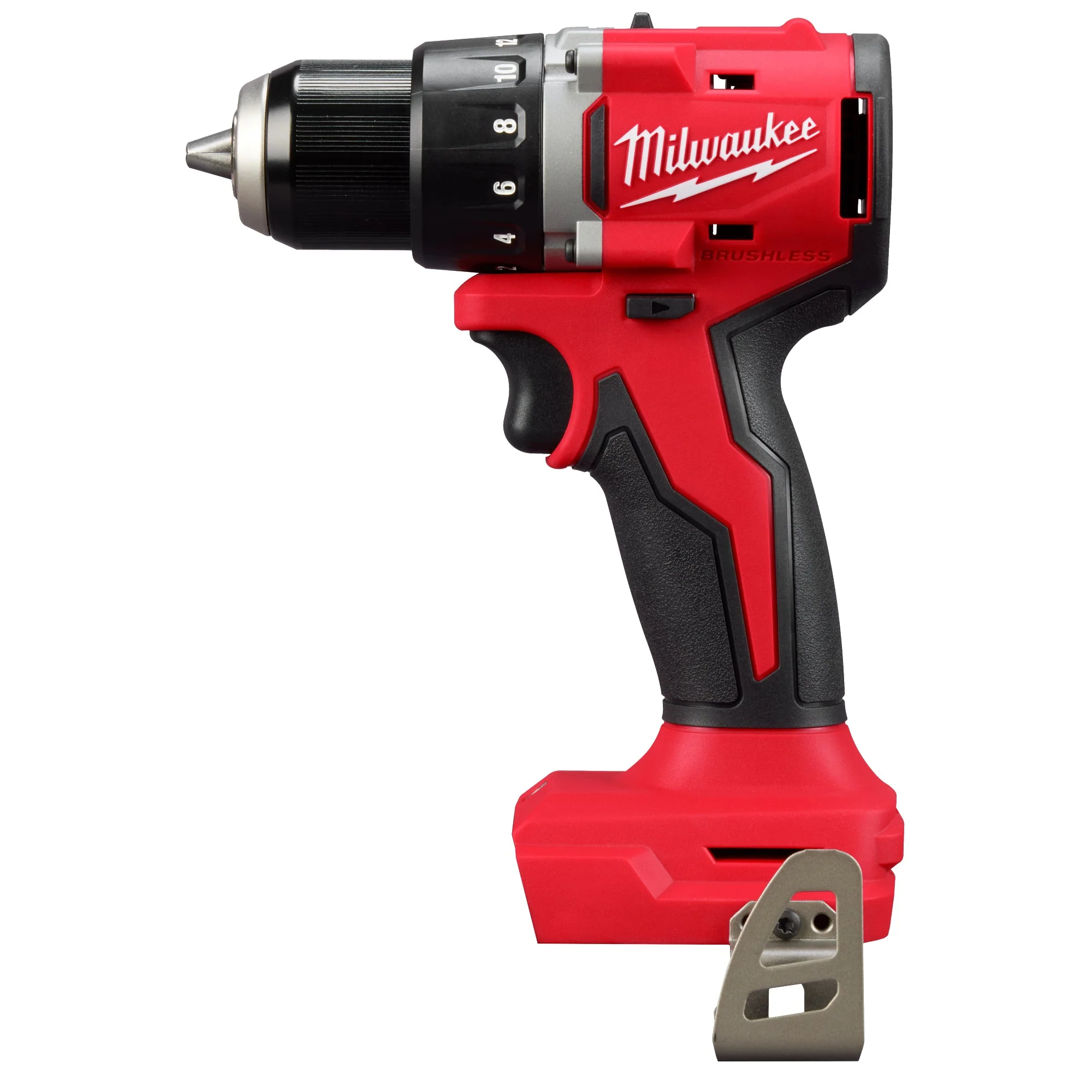

Milwaukee M18 1/2" Compact Brushless Drill/Driver M18 3601-20Z
OPTIMIZED POWER DENSITY FOR HIGH-VOLUME FASTENING
The M18 3601-20Z represents a significant evolution in power density, shrinking the footprint of a standard 1/2-inch drill/driver without sacrificing the torque required for common jobsite tasks. By utilizing a brushless motor architecture, this tool achieves a 5.7-inch profile that excels in tight cabinetry or between-stud applications where traditional drills struggle. The integration of REDLINK Intelligence ensures that the motor and battery communicate in real-time, preventing thermal overload during sustained high-speed drilling. For the professional, this translates to a tool that reduces fatigue during overhead work while maintaining the durability of an all-metal gear case and chuck for long-term ROI.
- / Ultra-Compact 5.7" Chassis: Engineered for superior access in confined spaces and reduced user fatigue during overhead applications.
- / Brushless Motor Technology: Delivers 550 in-lbs of torque and optimized RPM for faster application speeds and extended motor life.
- / REDLINK Intelligence: Advanced electronic circuitry protects the tool from overloading and overheating during heavy-duty cycles.
- / Professional-Grade Durability: Features an all-metal gear case and a 1/2" metal chuck for maximum bit retention and impact resistance.
TECHNICAL SPECIFICATIONS
| Voltage | 18V |
| Platform | M18 |
| Motor Type | Brushless |
| Peak Torque | 550 in-lbs |
| RPM Range | 0 - 500 / 0 - 1,700 |
| Chuck Type | 1/2" All-Metal Single Sleeve |
| Length | 5.7" |
| Weight (Bare Tool) | 2.3 lbs |
WHAT'S IN THE BOX
(1) M18 1/2" Compact Brushless Drill/Driver (3601-20), (1) Belt Clip
