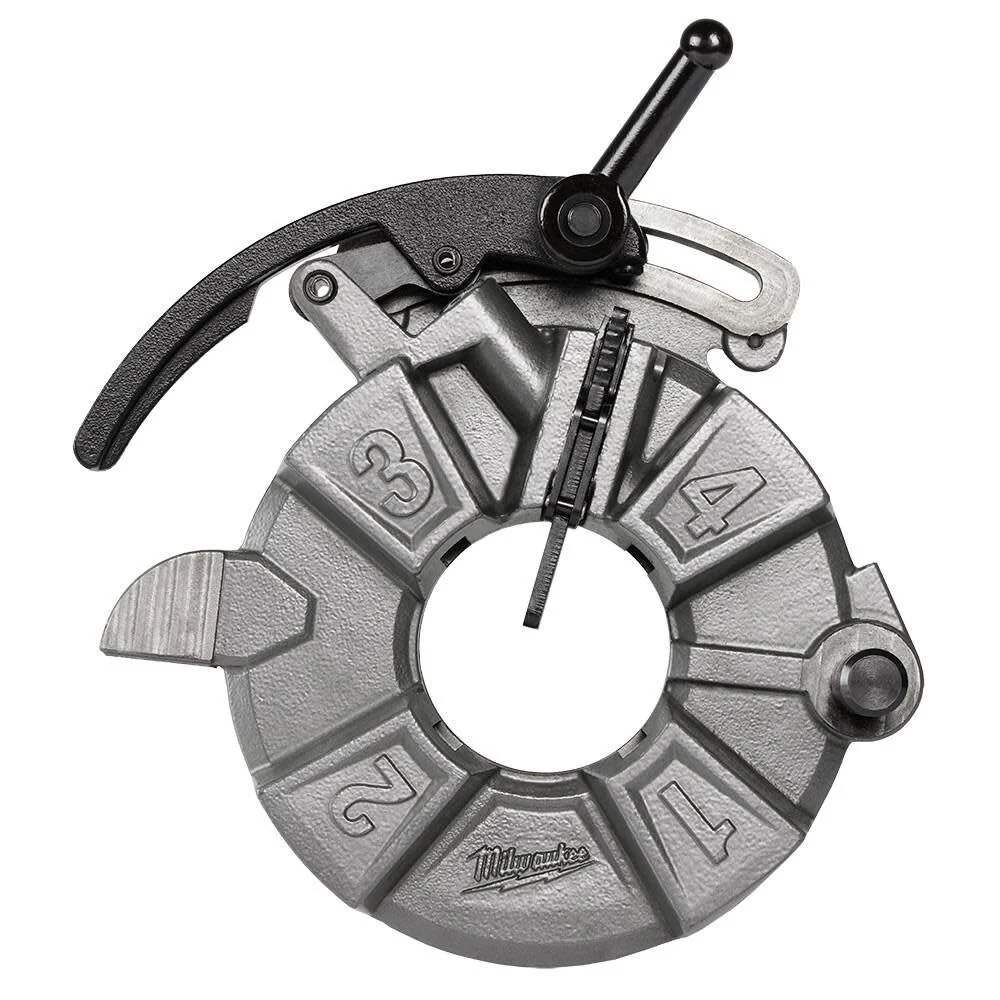

Milwaukee BSPT Pipe Threading Die Head w/ Micro-Adjust 49-16-5103

PRECISION TAPER CONTROL FOR LEAK-FREE MECHANICAL SYSTEMS

When you're running high-pressure gas lines or heavy-duty mechanical piping, the difference between a code-compliant connection and a costly callback is in the taper. This BSPT Pipe Threading Die Head is engineered for the plumber who can't afford to waste time on inconsistent threads. The integrated Micro-Adjust knob eliminates the guesswork, allowing you to fine-tune thread depth with surgical precision to ensure every fitting seats perfectly. Built to withstand the rigors of wet-work environments and high-torque demands, this head features an auto-release trigger that guarantees repeatable thread lengths, keeping your production speed high and your scrap pile low.

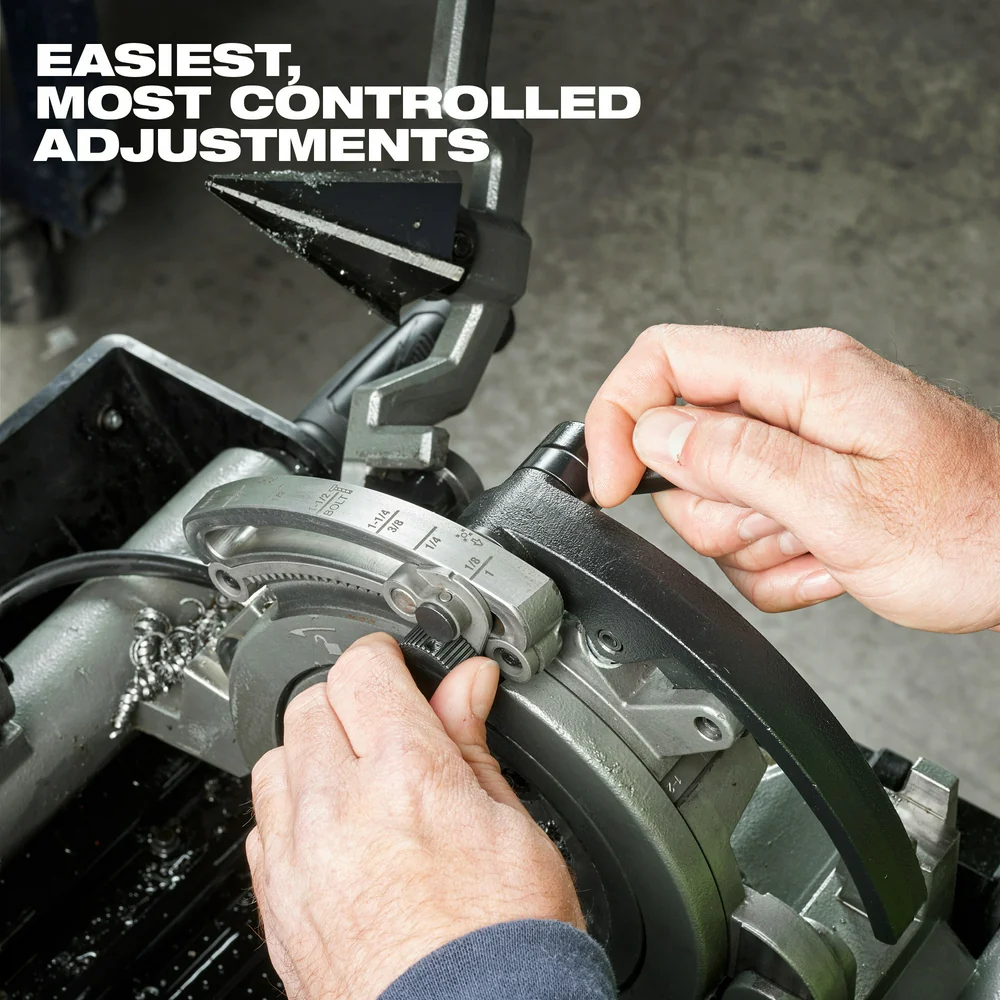

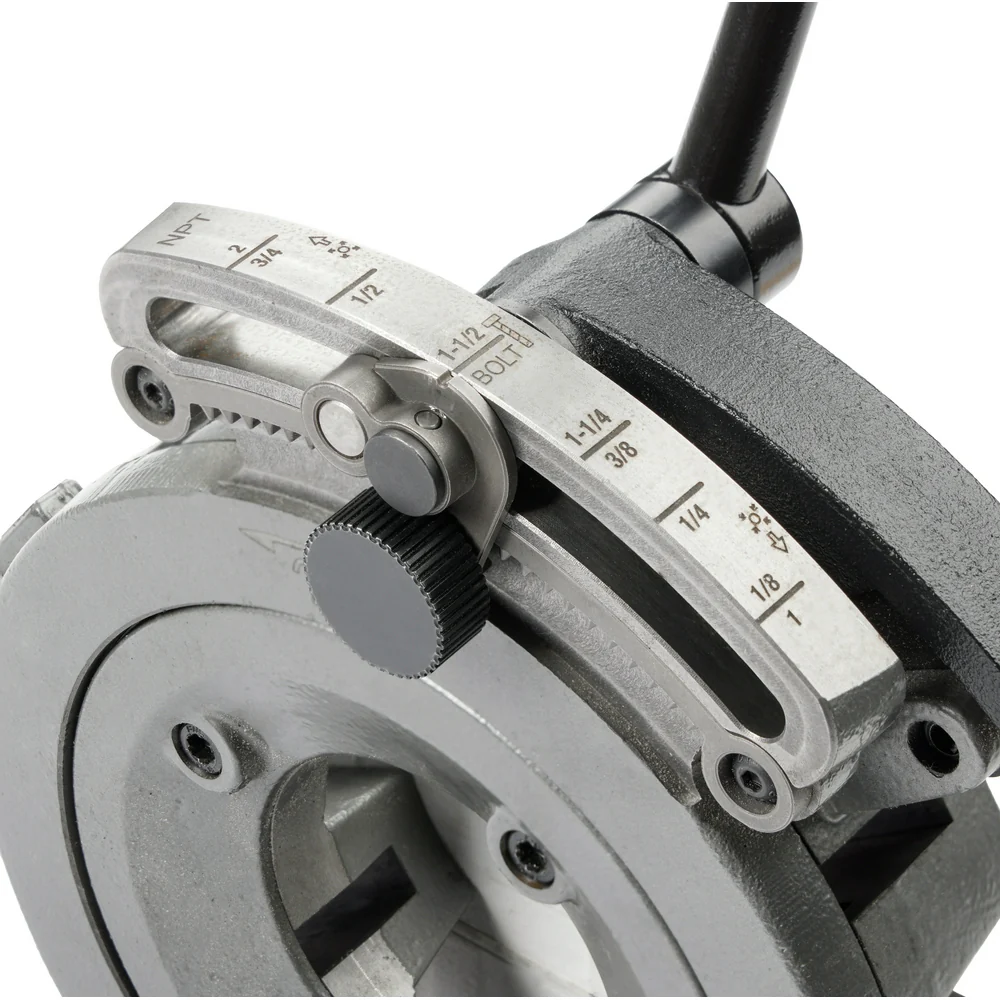

• / Micro-Adjust Knob provides the most controlled thread adjustments in the industry to ensure elite thread quality and fitting engagement.

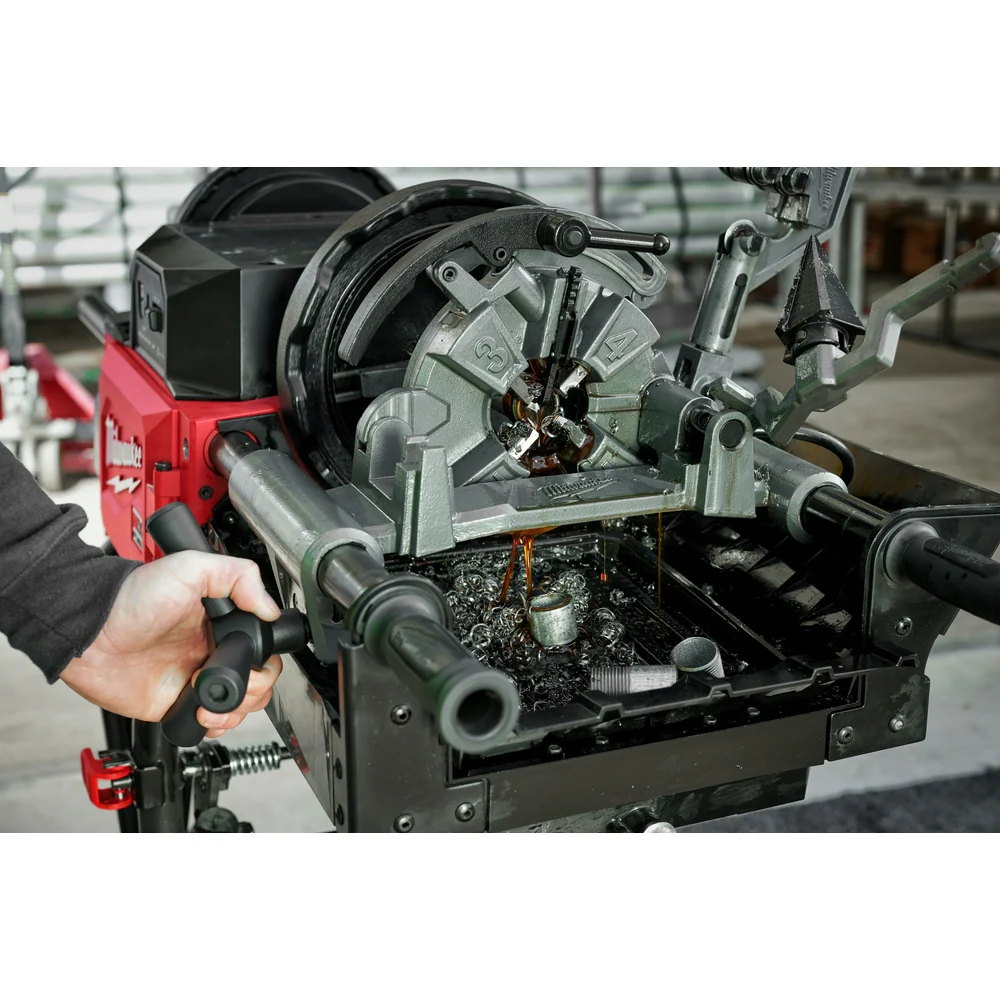

• / Auto-Release mechanism automatically opens the dies once the pipe reaches the set length, delivering perfect repeatability for large-scale installs.

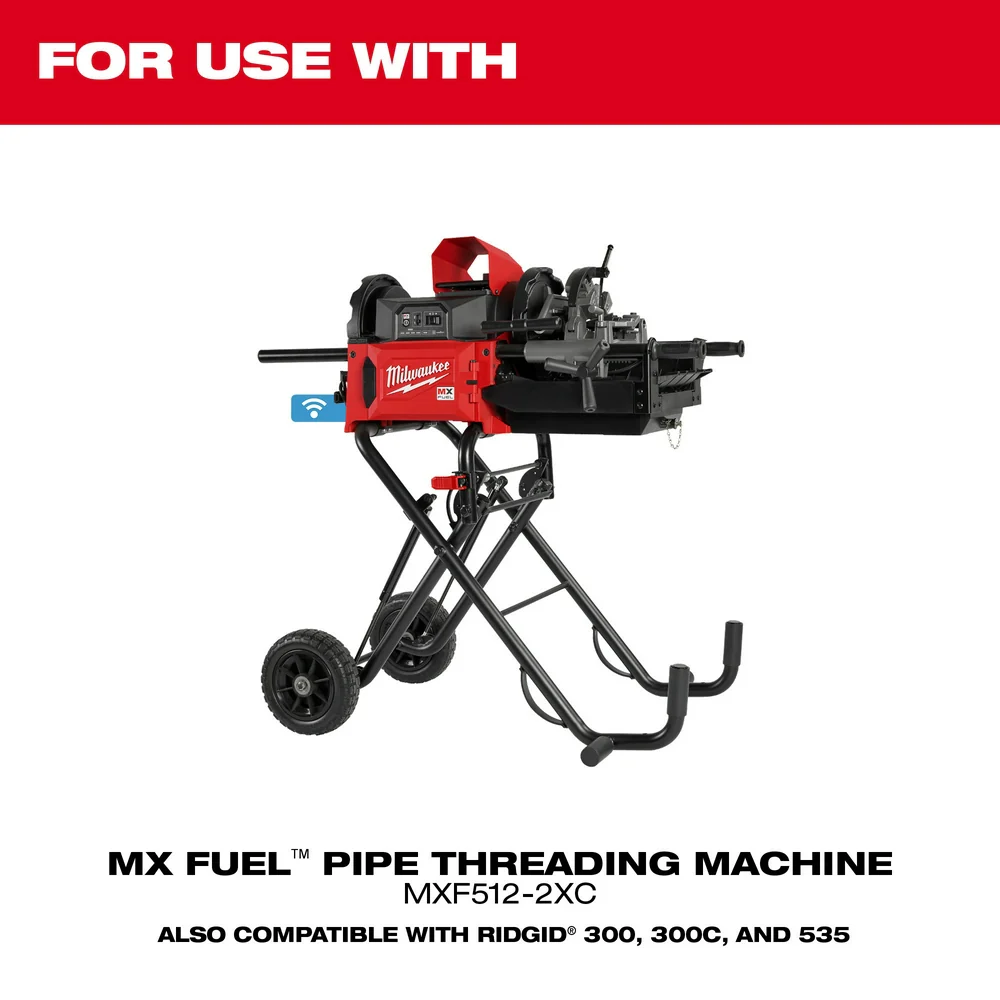

• / Optimized for the MX FUEL Pipe Threading Machine and fully compatible with industry-standard Ridgid 300 and 535 machines.

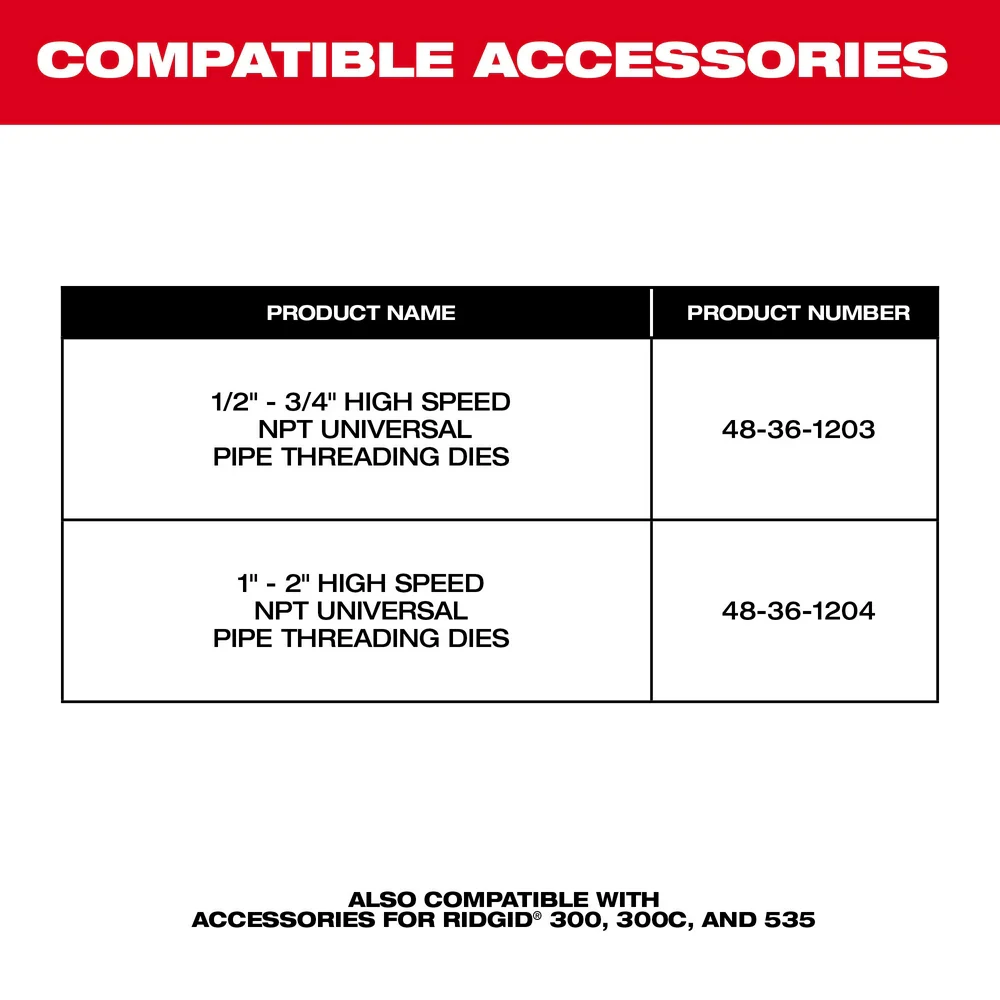

• / Universal Die compatibility allows for seamless integration with Milwaukee Universal Dies and other standard die sets.

TECHNICAL SPECIFICATIONS

Model Number	49-16-5103
Thread Type	BSPT (British Standard Pipe Taper)
Adjustment Type	Micro-Adjust Knob
Release Type	Auto-Release
Weight	10.0 lbs
Dimensions (LxWxH)	10.0" x 3.5" x 9.0"
Material	Heavy-Duty Metal Alloy

WHAT'S IN THE BOX

(1) BSPT Pipe Threading Die Head w/ Micro-Adjust (49-16-5103)
