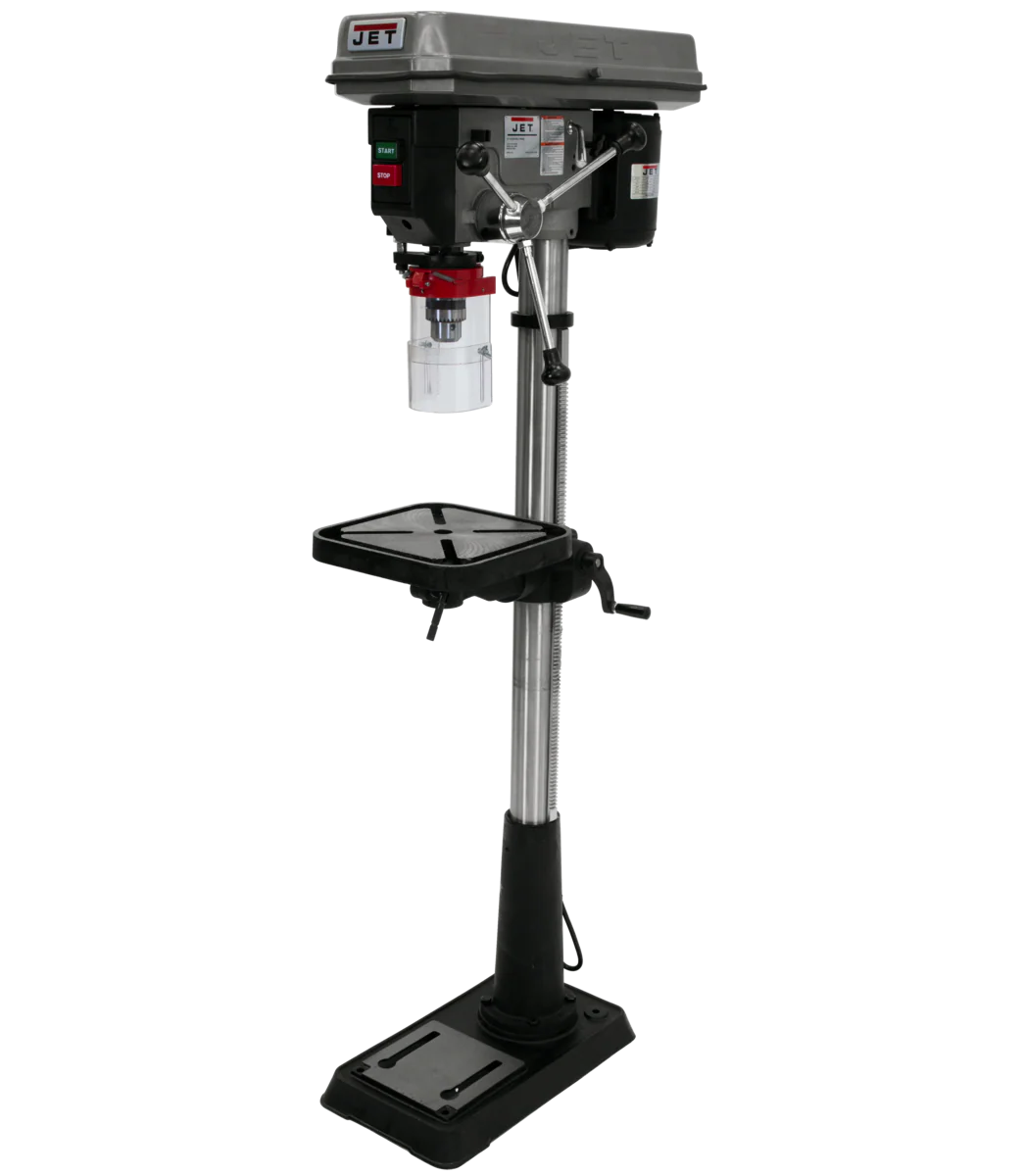

JET J-2500 15" Floor Model Drill Press
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
- 3-1/8" stroke for deep hole applications.
- Cast iron head.
- Constructed to provide a solid base for drilling.
- Large ground steel column for maximum head and table support.
- Large quill allows greater accuracy.
- Telescoping safety spindle guard.
- The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy.
SPECIFICATIONS
| Stock Number | JT9-354400 |
|---|---|
| Base Dimensions (In.) | 11 x 19-1/2 |
| Column Diameter (In.) | 2-7/8 |
| Distance Column to Spindle (In.) | 7-1/2 |
| Drilling Capacity Cast Iron (In.) | 5/8 |
| Drilling Capacity Mild Steel (In.) | 1/2 |
| Drills to Center of Circle (In.) | 15 |
| Model Number | J-2500 |
| Motor (HP) | 3/4 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 16 |
| Overall Dimensions (L x W x H) (In.) | 31 x 13 x 63 |
| Range of Spindle Speeds (RPM) | 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630 |
| Spindle Distance to Base (In.) | 48 |
| Spindle Distance to Table (Max.) (In.) | 24 |
| Spindle Taper (In. x TPI) | MT-2 |
| Spindle Travel (In.) | 3-3/8 |
| Style (Type) | Belt Drive |
| T-Slots Number and Size (In.) | 3 - 5/8 |
| Table Size (L x W) (In.) | 11-1/2 x 11-1/2 |
| Table Travel (In.) | 24 |
| Weight (Lbs.) | 167 |
| Work Table Weight Capacity (Lbs.) | 44 |
Operating Instructions & Parts Manual
