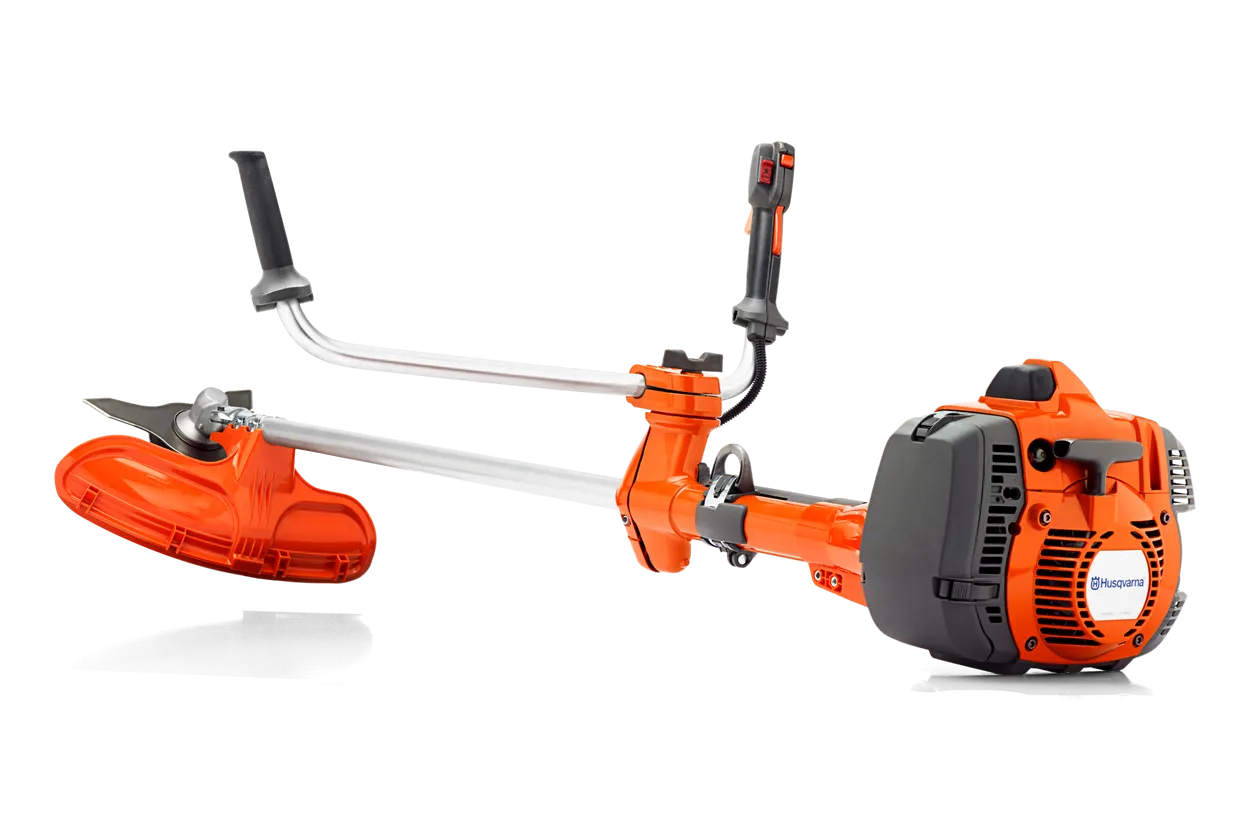

HUSQVARNA 545FR Gas Brush Cutter

Husqvarna 545FR comes complete with trimmer head, grass blade and saw blade. This flexibility makes it an ideal solution for people who require the benefits both products offer in one, effective package. The X-Torq® engine provide raw power and excellent fuel economy. LowVib® vibration damping maximizes user comfort and control.



ENGINE

Torque, Max.	2.6 Nm
Torque, Max. At RPM	6,000 rpm
Cylinder Displacement	2.8 cu.inch
Power Output	2.8 hp
Maximum Power Speed	9,000 rpm
Fuel Tank Volume	30.43 fl oz
Fuel Consumption	450 g/kWh
Idling Speed	2,700 rpm
Electrode Gap	0.02 in
Clutch Engagement Speed (±120)	3,900 rpm
Maximum RPM Output Shaft	8,800 rpm
Output Shaft Thread	M12x1.75V



TRANSMISSION

Gear Ratio	1.4
Drive Gear Angle	35 °



DIMENSIONS

Weight (excl. cutting equipment)	19.2 lbs
Tube Length	54.488 in
Tube Diameter	1.3 in



EQUIPMENT

Grass Blade	Multi 300-3
Harness	Balance X
Trimmer Head	T45X M12
Saw Blade	Scarlett 200-22



LUBRICANT

Lubricant Type (Engine)	Husqvarna 2 stroke or equiv. at 50:1
Lubricant Type (Bevel Gear)	Biodegradable grease



SOUND & NOISE

Sound Power Level, Guaranteed (LWA)	117 dB(A)
Sound Power Level, Measured	115 dB(A)
Sound Pressure Level At Operators Ear	100 dB(A)



EMISSION

Exhaust Emissions (HC Average)	36.45 g/kWh
Exhaust Emissions (HC Average)	35.37 g/kWh
Exhaust Emissions (CO Average)	262.85 g/kWh
Exhaust Emissions (CO Average)	269.16 g/kWh
Exhaust Emissions (NOx Average)	1.96 g/kWh
Exhaust Emissions (NOx Average)	1.76 g/kWh
