DYNABRADE Mini-Dynafile II Abrasive Belt Tool Versatility Kit

• .4 hp, 7 Degree Offset, 25,000 RPM, Rear Exhaust, for 1/8"-1/2" W x 12" L (3-13 mm x 305 mm) Belts.

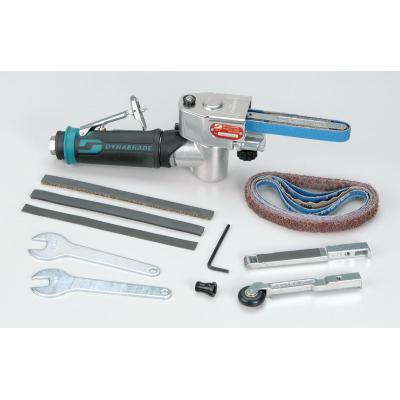

• Ideal for strap polishing and working in narrow openings. Kit includes 15003 Tool (15118 Drive Wheel) with 15026 Contact Arm for 1/2" wide x 12" long abrasive belts. Also includes 15028 and 15030 Arms.
• Lightweight ergonomic design handle features 7 degree offset. Multi-position grinding head pivots 360 Degree.
• Belt guard easily detaches for quick abrasive change; simple belt tracking adjustment knob.
• Kit includes 01644 Threaded Collet Insert to easily convert tool to 1/4" Die Grinder.
• Kit includes assorted coated and non-woven nylon belts, all in a durable carrying case.



SPECIFICATIONS

Air Consumption (SCFM)	20.0
Power (hp)	0.4
Max. RPM	25,000
Max. SFPM	4,890
Air Inlet Thread	1/4" NPT
Exhaust Type	Rear
GL_Country Of Origin	US
Hose I.D. in. (mm)	1/4"
Vacuum Type	Non-Vacuum
Motor Type	Rotary Vane
Height in. (mm)	3.5
Length in. (mm)	11.75
Weight lb. (kg)	2.21
Width in. (mm)	11.5
Pkg. Height in. (mm)	4
Pkg. Length in. (mm)	16
Pkg. Weight lb. (kg)	5.07
Pkg. Width in. (mm)	11.5
CE Certified	Yes
EAN (UPC)	0616026150065
EAC Certified	Yes
Tool Style	7 Degree Offset
