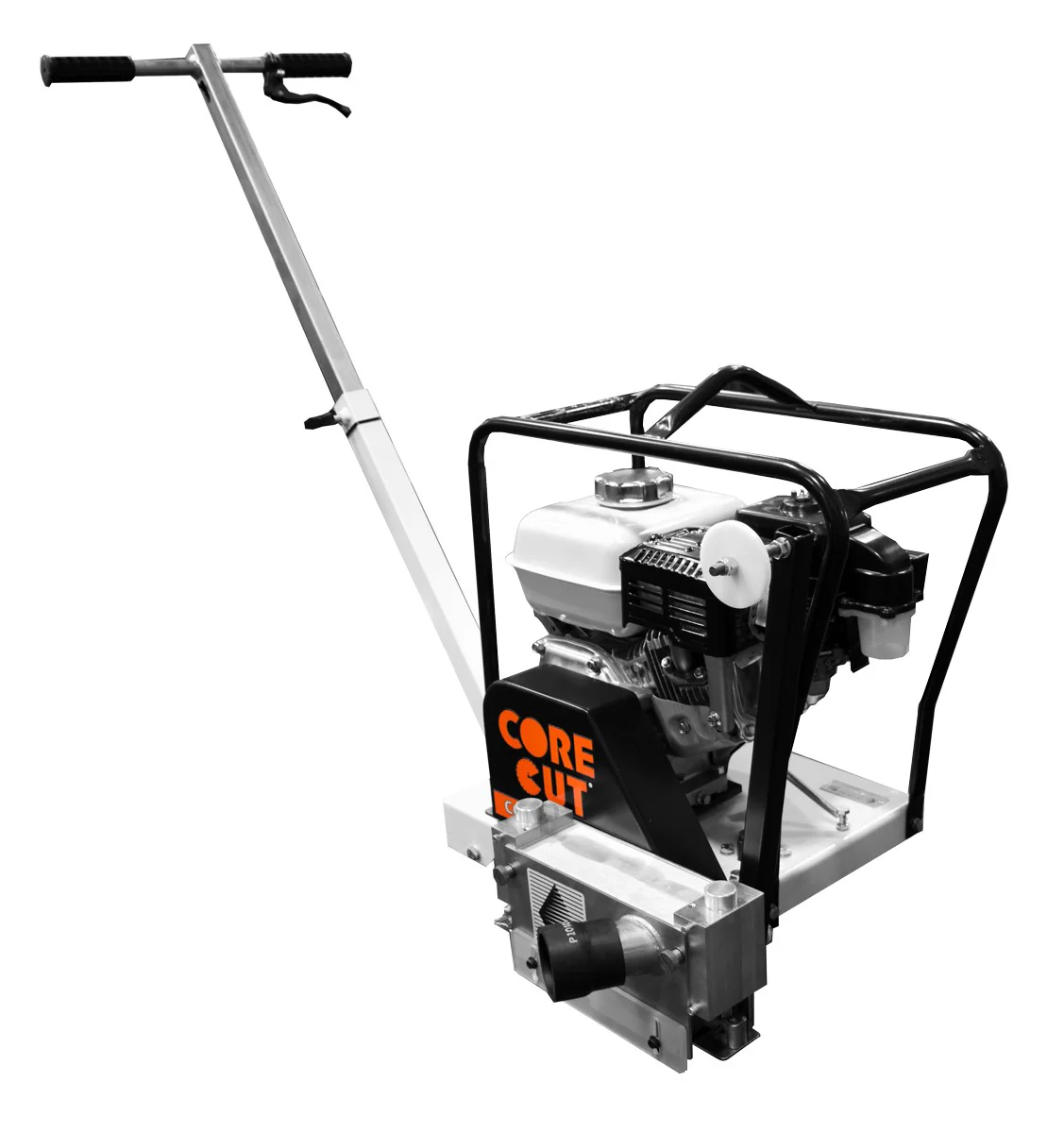

DIAMOND PRODUCTS CC150XL-EE FIRST-CUT™ Saw (HONDA GX160)

• Maximum Cutting Depth Of 1-3/16”.
• Reliable Skid Plate System For Green Concrete.
• Heavy Duty Design But Light Weight Enough For Two People To Lift.
• Cyclone Air Filter For Increased Air Flow.
• Up-Cut Design To Keep Debris From Going Back In The Cut.
• Blade Raise/Lower Mechanical Mechanism w/ Spring Loaded Release.
• Single Ribbed Drive Belt.

Blade Capacity: 6".

Engine/Motor Make & Model: HONDA GX160.

Engine/Motor Power: 4.8 HP, 7.6 torque (lbs-ft).

(CATALOG # 32739 / PART # 5801345)

BLADE SHAFT RPM	2,600
BLADE SHAFT DIAMETER	1-1/4”
ARBOR SIZE	1”
HANDLE BARS	ADJUSTABLE
DEPTH INDICATOR	STANDARD
