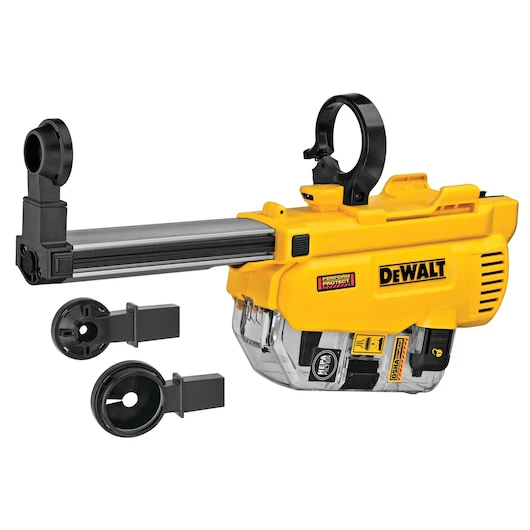

DEWALT DWH205DH SDS-Plus Rotary Hammer Dust Extractor - OSHA Table 1 Compliant

Master Dust Control: DEWALT DWH205DH OSHA Compliant Dust Extractor for SDS-Plus Hammers

Keep your jobsite compliant and clean with the DEWALT DWH205DH Dust Extractor, engineered specifically for the DCH263 20V MAX* XR® Brushless 1-1/8 in. D-Handle SDS Plus Rotary Hammer. This essential attachment provides powerful, integrated dust collection to meet OSHA Table 1 regulations, ensuring a healthier work environment and preventing costly cleanup. Built for the demands of general contractors and serious tradesmen, its robust design and efficient HEPA filtration system capture 99.97% of airborne particles 0.3 microns or greater, letting you focus on the task at hand, not the dust cloud.

• /OSHA Table 1 Compliant: Confidently meet regulations with a dust extractor designed to handle the toughest jobsite requirements.
• /Advanced HEPA Filtration: Captures 99.97% of particles 0.3 microns or larger, ensuring superior air quality and a cleaner workspace.
• /Versatile Nozzle System: Includes three optimized dust nozzle heads to accommodate bits up to 1" diameter, stop bits up to 1.5" shoulder, and small diameter bits up to 0.5", covering a wide range of drilling applications.
• /Integrated LED & Depth Stop: Illuminate your work in low-light conditions and achieve precise, repeatable anchor hole depths with the easily adjustable depth stop.
• /2-Second Power-Off Delay: Ensures all lingering dust is captured, maximizing efficiency and minimizing post-drilling cleanup.

Technical Specifications

SKU	DWH205DH
Tool Type	Dust Extractor (Attachment)
Compatibility	DEWALT DCH263 20V MAX* XR® Brushless 1-1/8 in. D-Handle SDS Plus Rotary Hammer
OSHA Compliance	Table 1 OSHA 1926.1153-compliant
Filter Type	HEPA, removes 99.97% of airborne particles 0.3 microns or greater
Max Bit Length	Up to 10 in. overall length
Nozzle Head Sizes (included)	Up to 1" diameter, 1.5" shoulder (for stop bits), 0.5" (small diameter bits)
Power-Off Delay	2-second delay
Integrated Light	LED for illuminating work area
Tool Length	17.8 in. (452 mm)
Tool Width	3.63 in. (92 mm)
Tool Height	9.83 in. (250 mm)
Tool Weight	3.42 lbs. (1.55 kg)
Power Source	Cordless (powered by compatible rotary hammer battery)

What's In The Box:

• /(1) DWH205DH Dust Extractor for DCH263 20V MAX* XR® Brushless 1-1/8 in. D-Handle SDS Plus Rotary Hammer
• /(1) DWH302DH, Table 1 OSHA 1926.1153-compliant Dust Box Assembly
• /(3) Optimized Dust Nozzle Heads (for various bit sizes)
