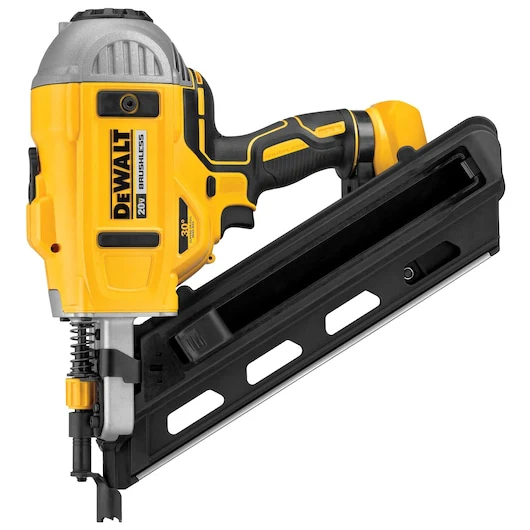

DEWALT 20V MAX XR Brushless Dual Speed Framing Nailer - Bare Tool DCN692B
Unleash Cordless Power: DEWALT 20V MAX XR Dual Speed Framing Nailer DCN692B
Tackle demanding framing jobs with unparalleled efficiency and freedom using the DEWALT DCN692B 20V MAX XR Brushless Dual Speed Framing Nailer. Designed for the relentless general contractor and framing carpenter, this bare tool eliminates the need for hoses, compressors, and gas cartridges, delivering consistent, powerful nail driving into dense lumber. Its innovative brushless motor and dual-speed optimization allow you to adjust performance for a wide range of fastener lengths, ensuring every nail is seated perfectly. Experience reduced downtime with tool-free adjustments and jam clearance, keeping your crew productive and on schedule from dawn till dusk.
- /Brushless Motor & Dual Speed Optimization: Provides extended runtime, enhanced durability, and the power to drive 2" to 3-1/2" framing nails with superior consistency, adapting to different material densities and nail lengths.
- /Tool-Free Firing Mode & Depth Adjustment: Effortlessly switch between sequential mode for precision and bump fire mode for speed, plus dial in precise nail depth without extra tools, ensuring professional results every time.
- /Quick Jam & Stall Clearance: Minimize interruptions with easy access to the nosepiece for jammed nails and a convenient stall release lever to reset the driver blade.
- /High-Capacity Magazine & Dry Fire Lockout: A 33° magazine holds up to 55 paper collated nails, while dry fire lockout protects the tool and workpiece when nails are low.
- /Ergonomic Design & Adjustable Rafter Hook: Lightweight and well-balanced for all-day use, featuring an adjustable rafter hook for convenient storage and portability on the jobsite.
Technical Specifications
| Power Source | 20V MAX Li-Ion (Battery Sold Separately) |
| Motor Type | Brushless |
| Fastener Type | 30° - 34° Paper Collated Framing Nails (Clipped Head or Offset Full Round Head) |
| Fastener Length | 2" - 3-1/2" (50mm - 90mm) |
| Nail Diameter | .113" - .131" (2.8mm - 3.3mm) |
| Magazine Angle | 33° |
| Magazine Capacity | 55 Nails |
| Firing Modes | Sequential & Bump Fire (Tool-Free Selector) |
| Depth Adjustment | Tool-Free |
| Jam Clearance | Tool-Free (Nosepiece & Stall Release) |
| Integrated Features | Dry Fire Lockout, Adjustable Rafter Hook, No-Mar Tip, Trigger Lock-Off |
| Tool Weight (Bare Tool) | Approx. 7.8 lbs (3.53 kg) |
| Dimensions (L x W x H) | 13.3" x 4.7" x 13.0" (Approx.) |
What's In The Box
- /(1) DEWALT DCN692B 20V MAX XR Brushless Dual Speed Framing Nailer (Bare Tool)
- /(1) No-Mar Tip
- /(1) Instruction Manual
- /(1) Reversible Belt Hook
