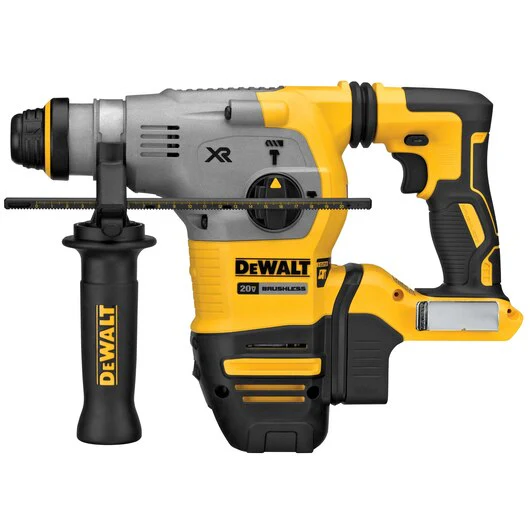

DEWALT DCH293B 20V MAX XR Brushless 1-1/8" SDS Plus Rotary Hammer - Tool Only

Unleash Corded Power, Cordless Freedom: DEWALT DCH293B

For the general contractor tackling demanding concrete applications, the DEWALT DCH293B 20V MAX XR Brushless 1-1/8" SDS Plus Rotary Hammer delivers formidable corded performance without the hassle of a cord. Engineered with a durable German mechanism and a robust DEWALT brushless motor, this hammer provides 3.5 Joules of impact energy, making quick work of large diameter holes in even the hardest concrete. Its balanced L-shape design and advanced safety features ensure all-day comfort and control, keeping your projects on schedule and your crew safe.

• / 3.5 Joules of Impact Energy: Experience demolition-grade power for rapid drilling and chipping in concrete, rivaling corded alternatives.
• / SHOCKS™ Active Vibration Control: Significantly reduces vibration felt at the handles, enhancing user comfort and extending productivity during prolonged use.
• / Anti-Rotation E-Clutch® System: Offers superior control by detecting bind-up situations and stopping rotation to minimize sudden torque reaction.
• / DEWALT Brushless Motor: Delivers maximum runtime and extended tool durability, crucial for continuous job site performance.
• / Three-Mode Operation & Dust Ready: Easily switch between drill, hammer drill, and chip modes; ready for OSHA Table 1 compliance with the D25304DH dust extractor (sold separately).

Technical Specifications

Tool Type	Rotary Hammer
SKU	DCH293B
Power Source	20V MAX* Cordless
Chuck Type	SDS Plus
Impact Energy	3.5 Joules
No-Load Speed	0-1,000 RPM
Blows Per Minute	0-4,480 BPM
Optimal Concrete Drilling	5/8" - 7/8"
Tool Length	13.78"
Tool Weight (Bare Tool)	8.2 lbs
Vibration Control	Yes (SHOCKS™ Active Vibration Control)
Clutch	E-Clutch® Anti-Rotation System
Motor Type	Brushless
Chipping Function	Yes

What's In The Box

The DEWALT DCH293B comes as a bare tool, giving you the flexibility to use your existing 20V MAX* batteries and chargers. Inside the box, you'll find everything you need to get started right away:

• / (1) DCH293 20V MAX* XR Brushless 1-1/8" SDS Plus Rotary Hammer (Tool Only)
• / (1) 360° Side Handle
• / (1) Depth Rod
• / (Batteries and Charger Sold Separately)
