DEWALT DCD470X1 60V MAX* In-Line Stud & Joist Drill Kit – Unmatched Power & Safety for Pros

Unleash Cordless Power: DEWALT DCD470X1 60V MAX* In-Line Stud & Joist Drill

Conquer demanding drilling applications with the DEWALT DCD470X1 60V MAX* In-Line Stud and Joist Drill Kit. Designed for general contractors, plumbers, and electricians tackling large-diameter holes, this beast combines the raw power of a corded tool with the unparalleled freedom of cordless operation. Its advanced anti-rotation E-CLUTCH® System actively senses tool motion, shutting down in bind-up situations to keep you safe and in control on the jobsite. Driven by a robust brushless motor and featuring a durable magnesium gear case, this drill delivers relentless performance and impressive runtime through thick and thin.

• /Anti-Rotation E-CLUTCH® System: Elevate jobsite safety with technology that detects tool motion and automatically shuts down in bind-up situations, indicated by a bright red LED.
• /60V MAX* Brushless Motor: Experience exceptional power and extended runtime, allowing you to power through tough materials and complete more tasks per charge.
• /Two Variable-Speed Ranges: Optimize performance for any application with versatile 0-400 RPM for heavy-duty torque and 0-1320 RPM for faster drilling, easily shifted without feathering the trigger.
• /Magnesium Gear Case & Tool Connect™ Ready: Benefit from a lighter yet highly durable design, plus the integrated capability to track and locate your drill via a DEWALT Tool Tag (sold separately).
• /Broad Application Versatility: Capable of handling up to 4-5/8 inch self-feed bits, 6-1/4 inch hole saws into wood, and dry core drilling up to 6 inches, making it a true workhorse on any jobsite.

TECHNICAL SPECIFICATIONS

Voltage	60V MAX*
Chuck Size	1/2 inch Keyed
No-Load Speed	0-400 / 0-1320 RPM
Max Self-Feed Bit Capacity (Wood)	4-5/8 inches
Max Hole Saw Capacity (Wood)	6-1/4 inches
Max Dry Core Drilling Capacity	6 inches
Tool Weight (Bare)	15.32 lbs
Tool Length	21.3 inches
Tool Height	6.95 inches
Motor Type	Brushless
Clutch Type	Anti-Rotation E-CLUTCH® System
Gear Case Material	Magnesium

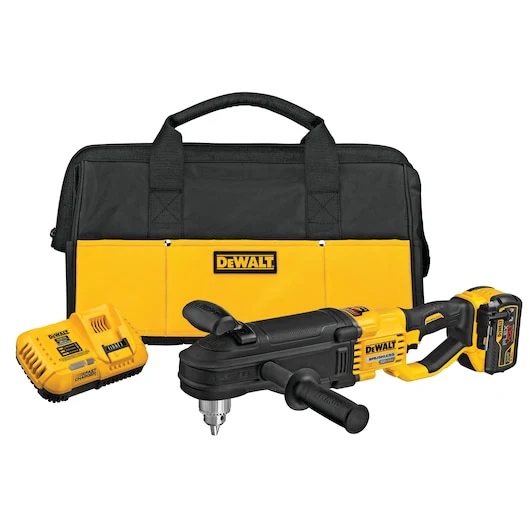

WHAT'S IN THE BOX

Get everything you need to start drilling right out of the box with the DEWALT DCD470X1 kit. It includes:

• /(1) DCD470 60V MAX* In-Line Stud and Joist Drill
• /(1) DCB609 FLEXVOLT™ 9.0Ah Battery
• /(1) DCB118 Fast Charger
• /(1) Contractor Bag
• /(1) Chuck Key with On-Board Holder
• /(1) 2-Position Side Handle
