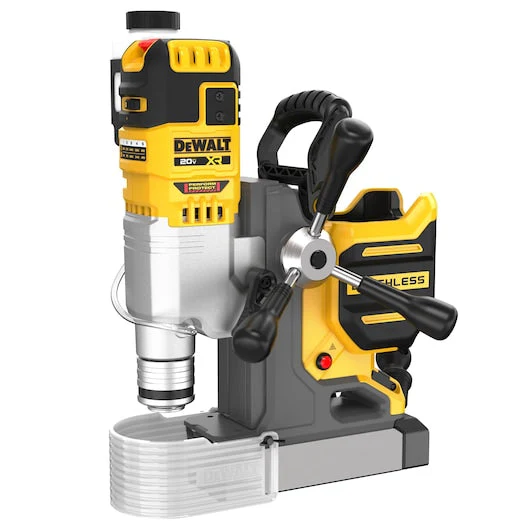

DEWALT DCD1624B 20V MAX* XR® 2 in. Cordless Magnetic Drill Press (Tool Only)

Unleash Cordless Power on Structural Steel with the DEWALT DCD1624B

For general contractors and metal fabricators who demand uncompromising power and portability, the DEWALT DCD1624B 20V MAX* XR® 2-inch Cordless Magnetic Drill Press is your go-to solution. This bare tool powerhouse, part of DEWALT's most advanced 20V MAX* drilling line, cuts through structural steel with the precision and speed needed to keep your projects moving. Engineered for efficiency and maximum user control, it’s built to deliver all-day performance without being tethered to an outlet, ensuring you can tackle challenging jobs anywhere on site.

• /High Drilling Capacity: Power through tough jobs, drilling up to a 2-inch hole through 2 inches of structural steel.
• /Permanent Magnetic Base: Quickly attach to steel 1/4 inch or thicker without requiring an electrical charge, maintaining a secure hold even if power is lost.
• /10-Speed Regulation: Optimize performance across various materials and bit sizes with 5 variable settings for each of the 2 mechanical gears.
• /Quick Change Chuck System: Experience tool-free adjustments, easily switching between 3/4-inch Weldon-style shanks and the included 5/8-inch keyed chuck.
• /Anti-Rotation E-Clutch® System: Enhance safety and control with a feature that senses the rotational motion of the tool and shuts it down if excessive.

Technical Specifications

Voltage	20V MAX*
Max Hole Capacity	2 in. (50mm)
Max Drilling Depth	2 in.
No Load Speed	130-420 / 250-810 RPM
Speed Settings	10 (2 Mechanical x 5 Variable)
Chuck Type	3/4" Weldon Shank & 5/8" Keyed Chuck
Tool Weight (Bare)	31.8 lbs.
Brushless Motor	Yes
LED Light	Yes
Perform & Protect™	Yes
TOOL CONNECT™ Chip Ready	Yes (chip sold separately)

What's in the Box

The DEWALT DCD1624B is a bare tool, providing you the flexibility to utilize your existing DEWALT 20V MAX* batteries and charger. The package includes everything you need to get drilling:

• / (1) DCD1624 20V MAX* XR® 2 in. Magnetic Drill Press
• / (1) 5/8 in. Keyed Chuck Attachment
• / (1) Chuck Key
• / (1) Fluid Reservoir with Tube
• / (1) Chip Guard
• / (1) Safety Chain
• / (2) Ejection Pins
• / (1) Feed Handle Set
• / (1) Reservoir Bracket
• / (1) Allen Key
• / (1) Wrench
• / (2) Wing Bolts
• / (1) Kit Box
