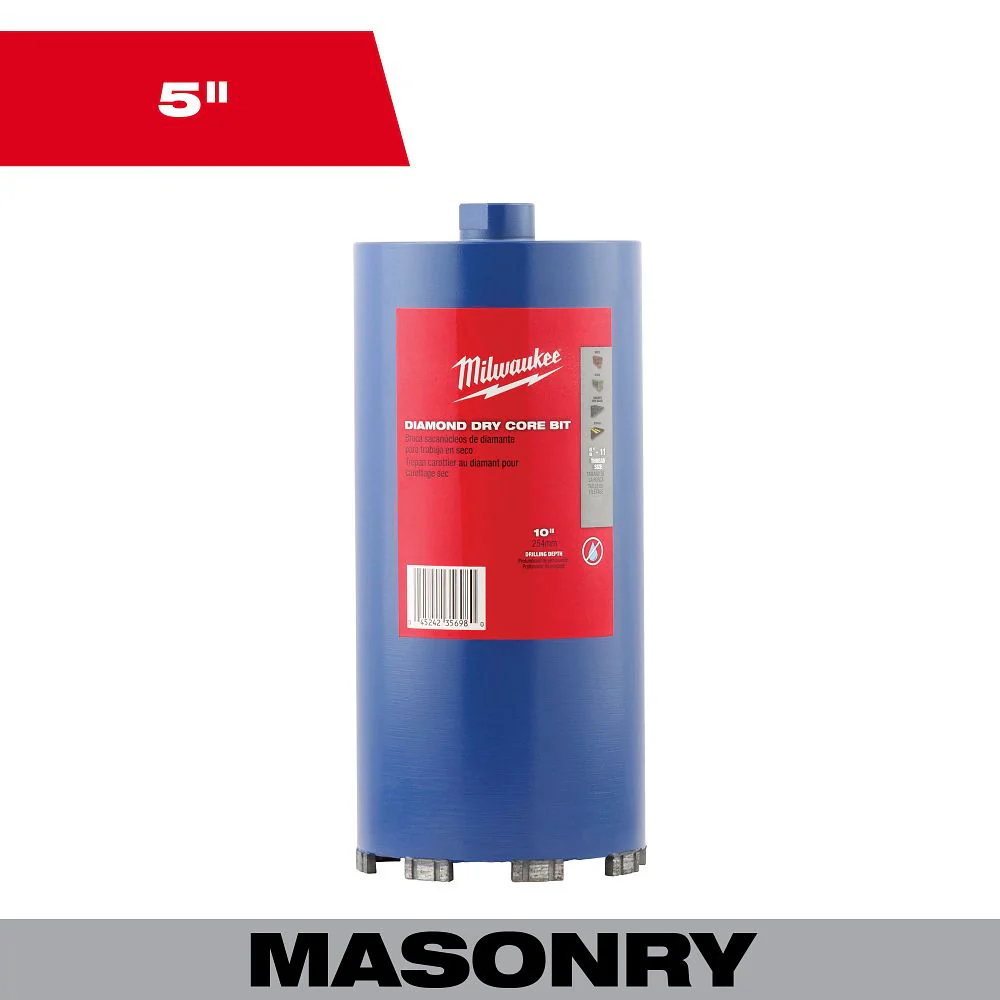

Milwaukee 5" Diamond Dry Core Bit 48-17-0050

HIGH-PRODUCTION DRY CORING FOR UNREINFORCED MASONRY

When your project demands clean, high-speed penetrations through brick and CMU without the logistical headache of a wet rig, this 5-inch diamond dry core bit is the professional standard. Engineered for heavy-duty structural applications, the thin-wall design significantly reduces drag, allowing your core motor to maintain peak RPMs while slicing through masonry. This bit is purpose-built for dry operation, utilizing advanced heat-dissipation geometry to ensure the diamond bond remains effective even during extended drilling cycles in high-friction environments.

• / THIN-WALL GEOMETRY: Maximizes drilling speed by reducing the surface area of the cut, ensuring faster progress through unreinforced block.
• / INTEGRATED COOLING SLOTS: Large side apertures facilitate rapid airflow and debris extraction, preventing thermal glazing of the diamond segments.
• / 10-INCH DRILLING DEPTH: Optimized for standard wall thicknesses, providing the reach necessary for mechanical pass-throughs and structural anchoring.

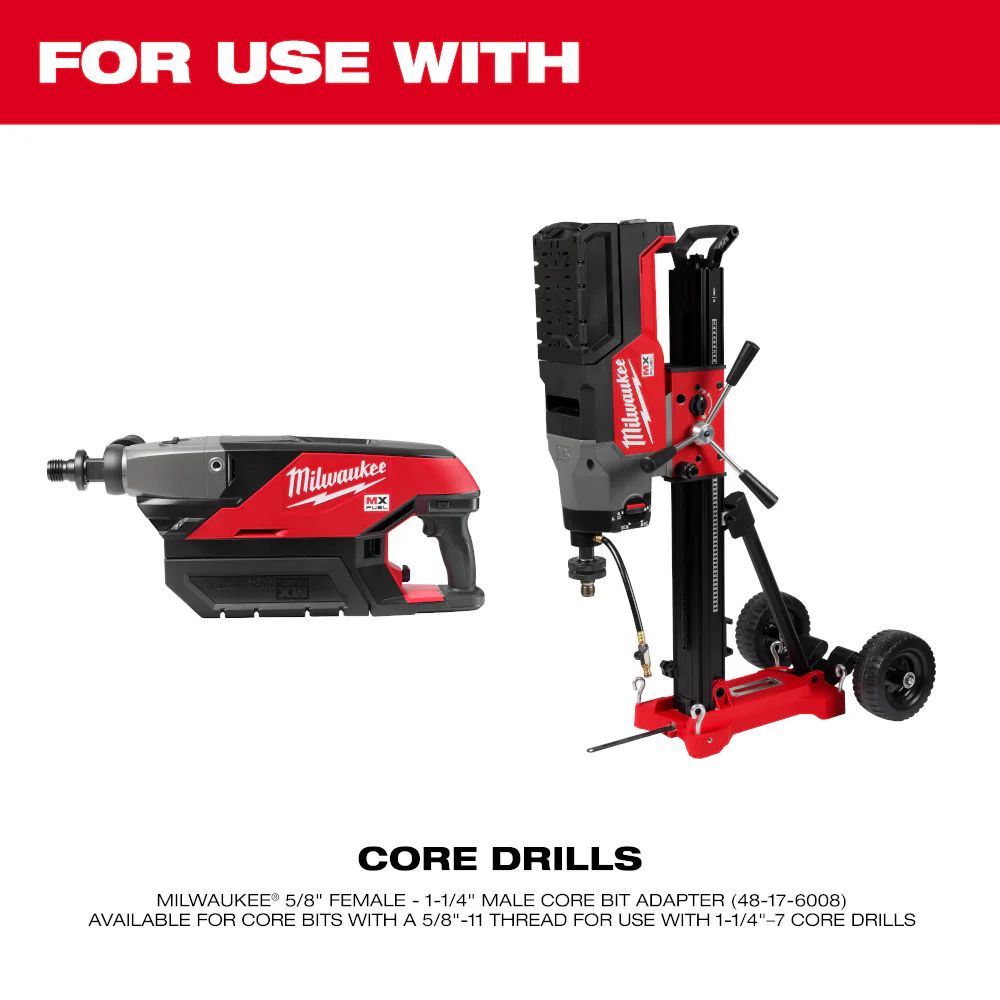

• / 5/8"-11 THREADED HUB: Ensures a secure, high-torque connection to professional-grade core drills and handheld power units.

TECHNICAL SPECIFICATIONS

Diameter	5 in.
Drilling Depth	10 in.
Thread Size	5/8"-11
Application	Dry Use Only
Recommended Materials	Brick, Block, Masonry (No Reinforcement)
Max RPM	3,500

WHAT'S IN THE BOX

(1) 5" Diamond Dry Core Bit (48-17-0050)
