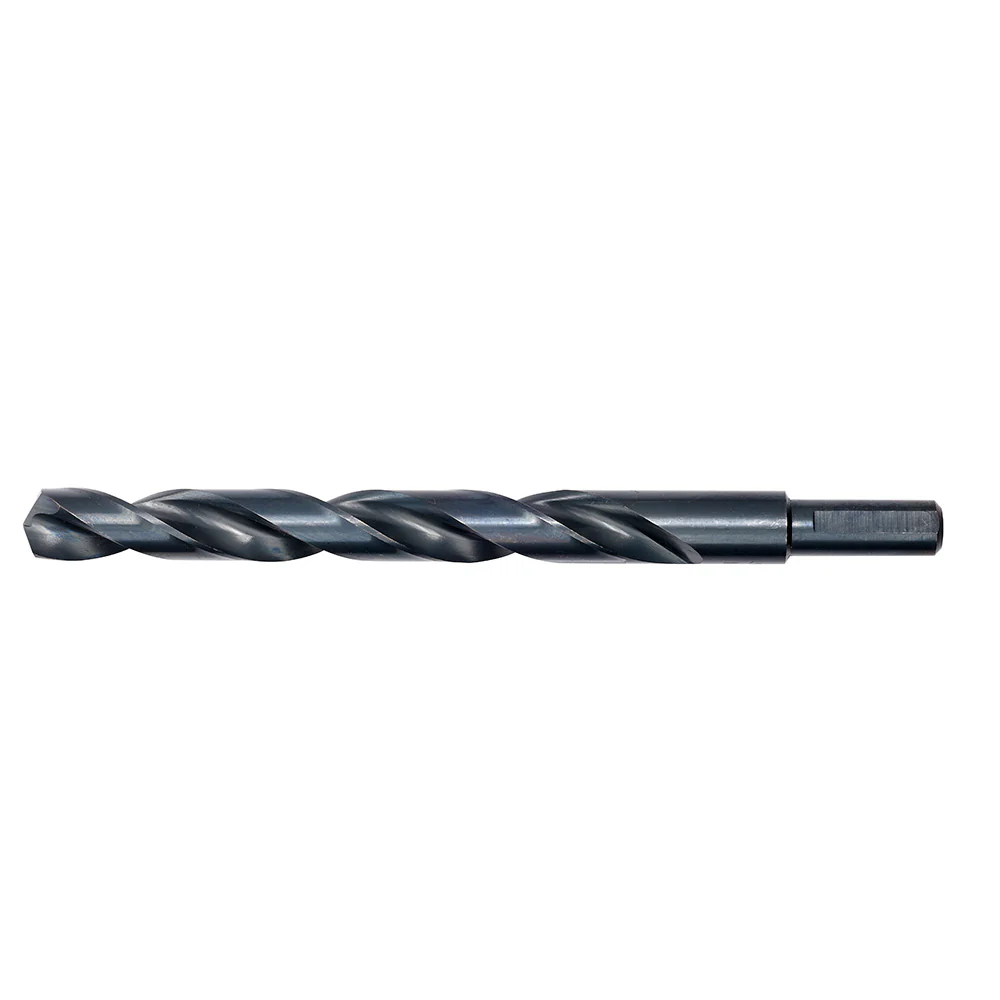

Milwaukee 23/64" Thunderbolt Black Oxide Drill Bit 48-89-2737
MAXIMUM CORE STRENGTH FOR HIGH-TORQUE DRILLING APPLICATIONS
Engineered to solve the common failure point of standard bits, the Milwaukee Thunderbolt 23/64" Black Oxide Drill Bit features a significantly thicker core to provide ultimate protection against side-load breakage. This reinforced web design is critical when drilling through thick-gauge metals or curved surfaces where bit flex often leads to snapping. The 135° split point eliminates the need for a center punch by starting on contact, preventing the bit from walking across the workpiece and ensuring professional-grade accuracy in metal, wood, and PVC. For the high-volume user, the parabolic flute geometry is a mechanical advantage, ejecting chips rapidly to reduce heat buildup and extend the cutting life of the edge.

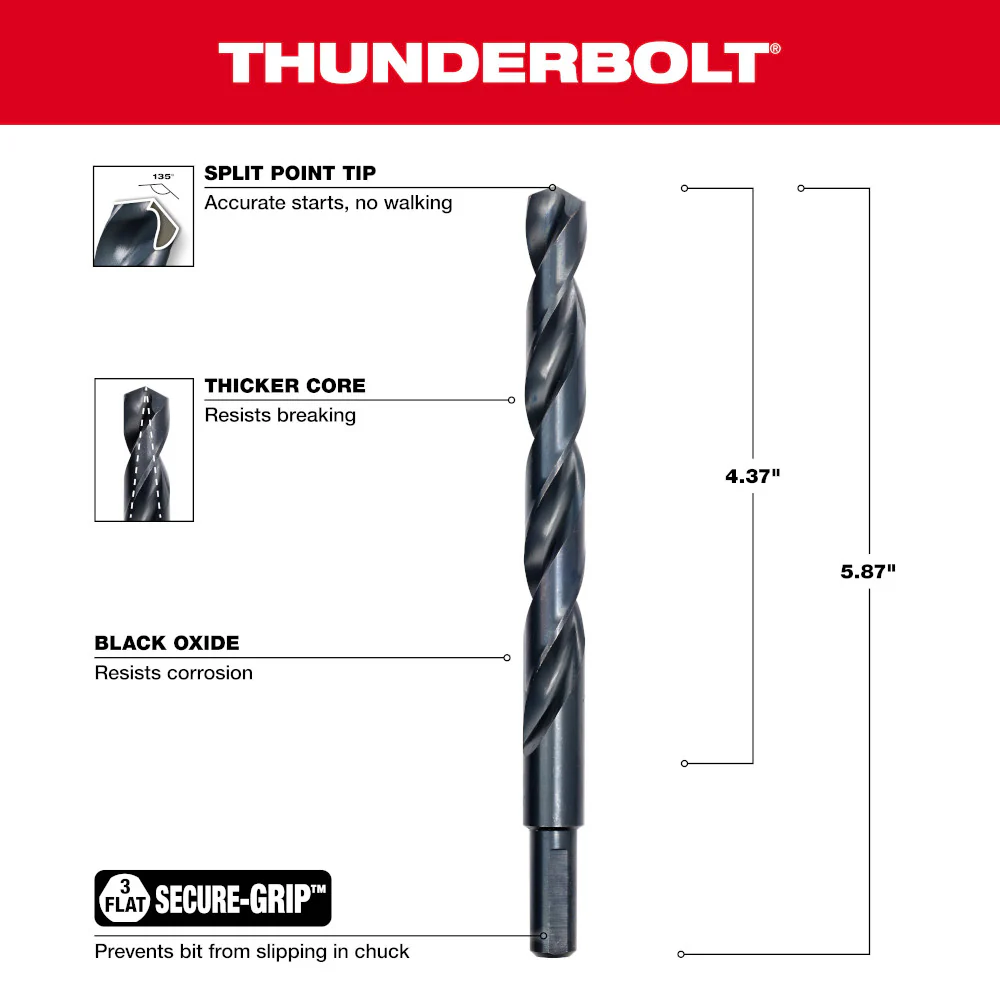

- / Thunderbolt Web Design: Thicker core provides superior structural integrity and resists snapping under heavy side-loading.
- / 135° Split Point Tip: Delivers an immediate, precision start on contact to prevent walking and improve hole placement accuracy.
- / 3-Flat Secure-Grip™ Shank: Mechanical flats prevent the bit from spinning in the drill chuck during high-torque applications.
- / Parabolic Flute Geometry: Clears chips and debris faster to minimize friction and maintain cooler operating temperatures.
- / Black Oxide Coating: Enhances lubricity and provides a critical layer of corrosion resistance for long-term jobsite durability.
TECHNICAL SPECIFICATIONS
| Diameter | 23/64" |
| Material | Black Oxide |
| Shank Type | 3-Flat Secure-Grip™ |
| Drill Point | 135° Split Point |
| Length | Jobber |
| Application | Metal, Wood, Plastic |
WHAT'S IN THE BOX
(1) 23/64" Thunderbolt Black Oxide Drill Bit (48-89-2737)
