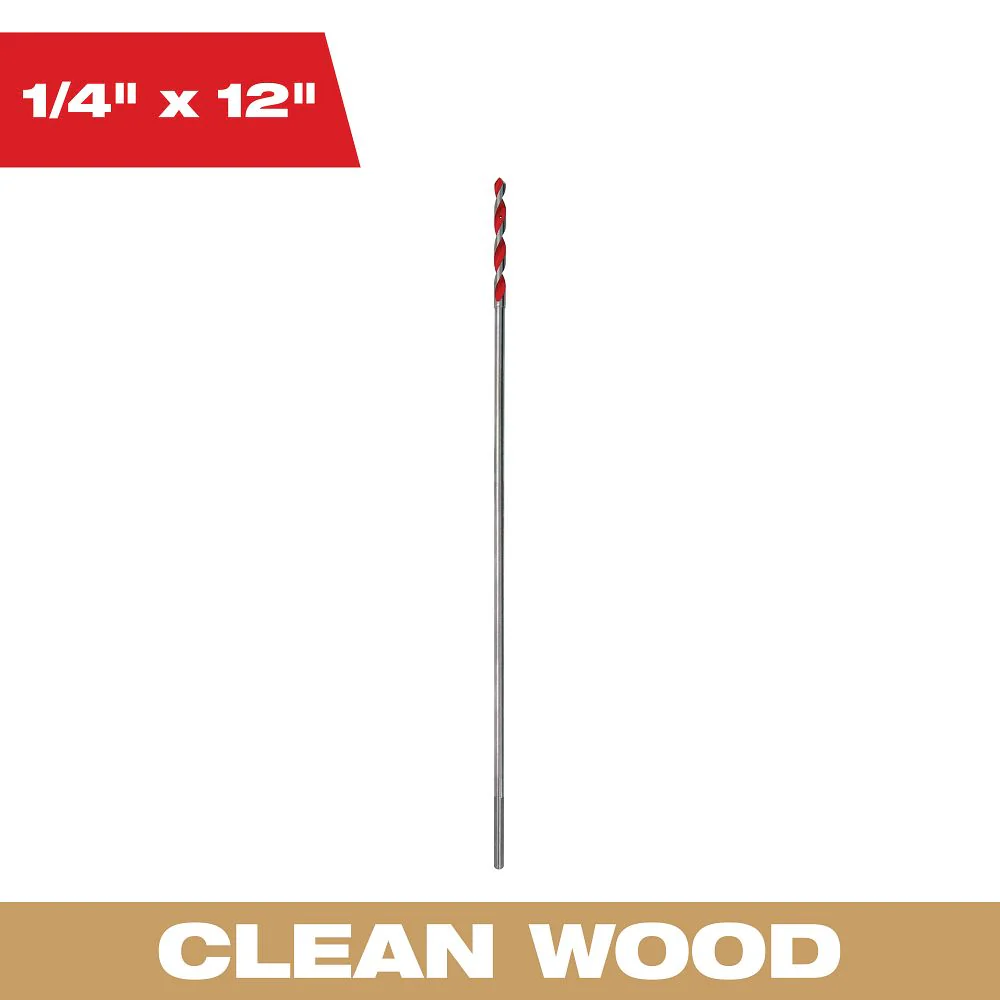

Milwaukee 1/4" x 12" Bellhanger Bit 48-13-7125
PRECISION WIRE ROUTING & HIGH-SPEED WALL PENETRATION

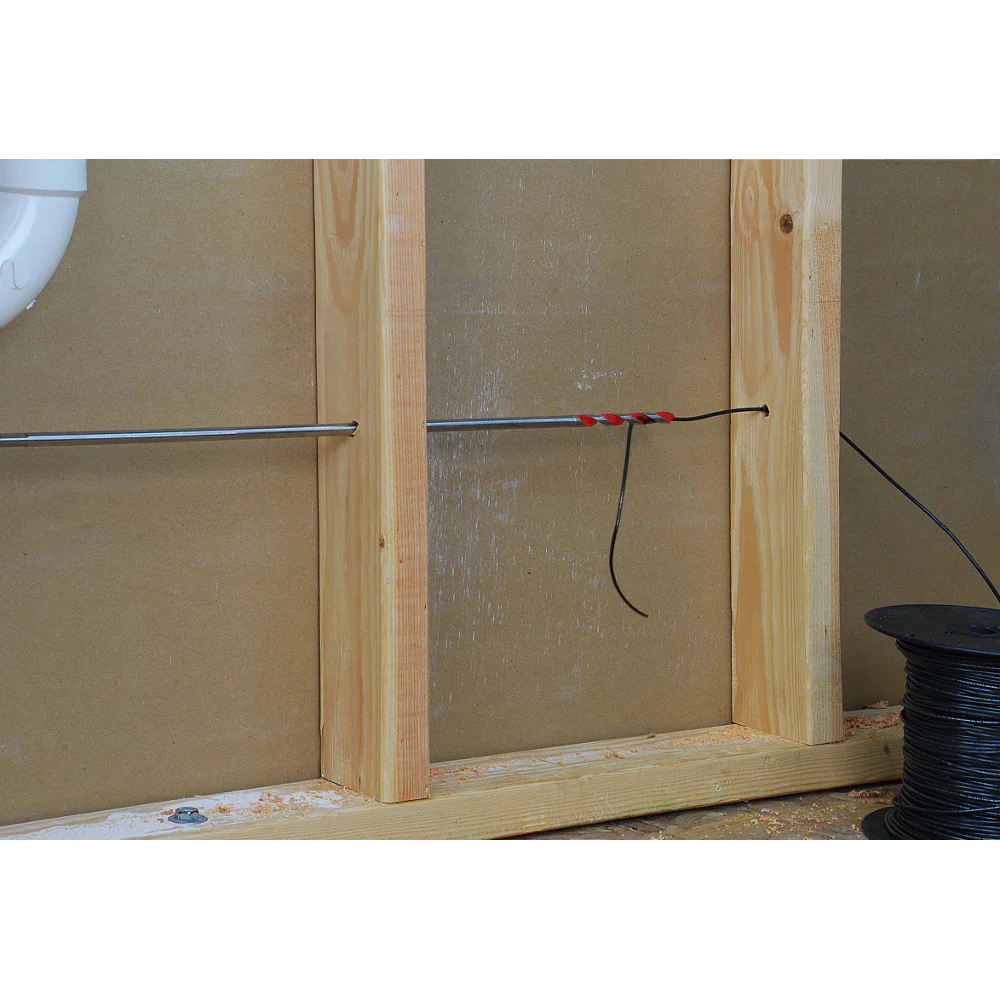

When you're running CAT6, security, or phone lines through finished walls and headers, efficiency is measured by how few times you have to fish for a lost lead. This 12-inch bellhanger bit is engineered specifically for low-voltage installations, featuring a specialized pull-through hole in the tip that allows you to attach your wire directly to the bit and pull it back through the cavity in one fluid motion. The aggressive tip geometry bites into wood and light-gauge metal instantly, ensuring clean, straight paths for your cable runs without the wandering common in standard long-length bits.

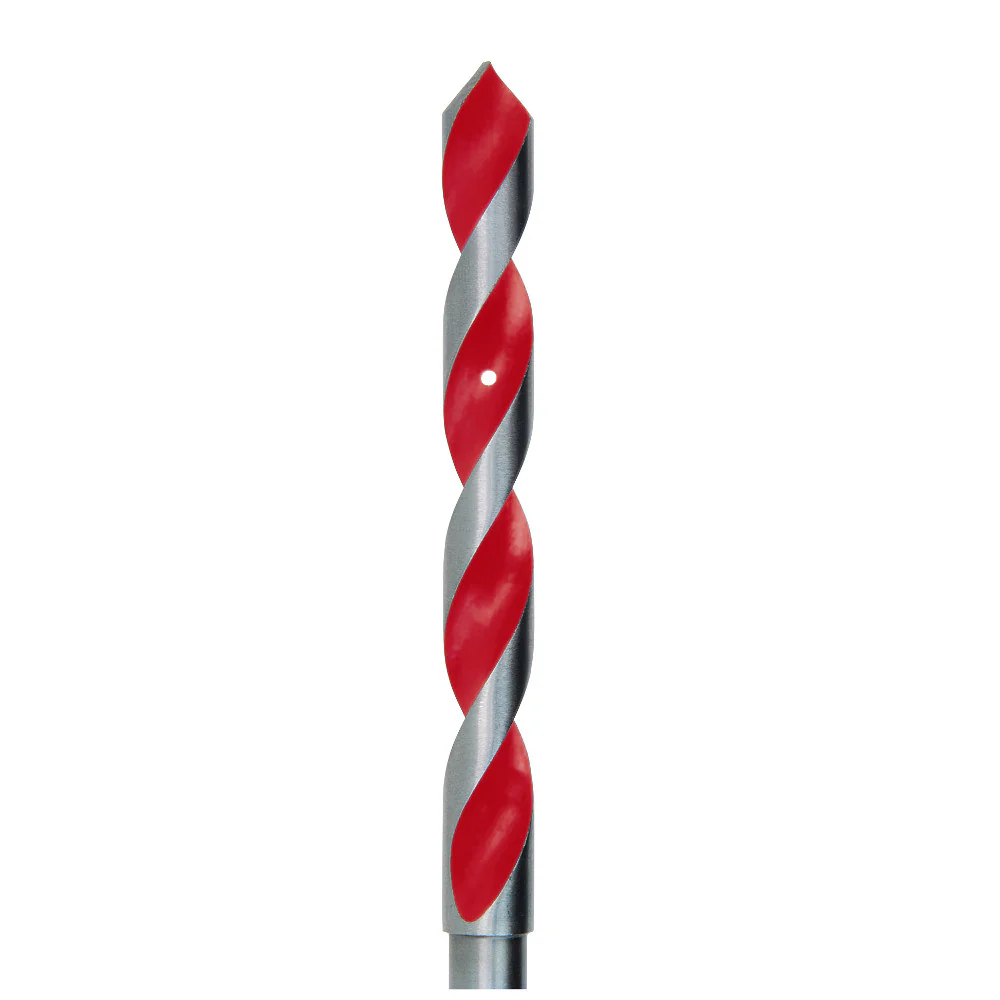

- / Integrated pull-through hole in the tip enables immediate wire attachment for seamless cable retrieval through walls and floors.
- / 3-Flat Secure-Grip™ shank eliminates bit slippage in the drill chuck, providing maximum torque transfer when drilling through dense structural members.
- / Non-stick coated flutes accelerate chip ejection and significantly reduce binding heat, extending the life of the cutting edge during repetitive use.
- / High-speed steel construction with aggressive tip geometry ensures fast, precise starts and rapid material removal in wood, plastic, and light metal.
TECHNICAL SPECIFICATIONS
| Diameter | 1/4" |
| Overall Length | 12" |
| Usable Length | 8" |
| Flute Length | 4" |
| Shank Type | 3-Flat Secure-Grip™ |
| Material | High Speed Steel (HSS) |
| Application | Low-Voltage / Security / Data Wiring |
WHAT'S IN THE BOX
(1) 1/4" x 12" Bellhanger Bit (48-13-7125)
