1 HP LOW SPEED BENCH GRINDER 80-820 has a larger size motor that will tackle the tough grinding jobs which are typical in production shops, as well as the finesse shaping and sharpening of hand tools. Wide 1-1/2” wheels provide greater surface area to reduce heat build-up. Tool rests on this machine are extra-large and flat, without a drill bit sharpening groove. Wheel flanges are cast metal. Grinder includes 1-1/4” O.D. dual dust collection ports on the rear of the wheel guards, and eye shields with 2.5x magnification for close-up inspection of your edges being ground.

Powerful 1HP motor.
8” x 1-1/2” Vitrified aluminum oxide grinding wheel.
Cast iron bases with rubber feet reduce vibration.
Holes in the base for mounting to a bench or stand.
Adjustable cast metal tool rests give solid tool support.
Adjustable safety eye shields give added protection.
Adjustable spark shields keep users safe from hot sparks.
Aluminum oxide grinding wheels give excellent cutting action.
60 Grit abrasive wheel for rough grinding and metal removal.
120 Grit abrasive wheel for final sharpening or shaping.

SPECIFICATIONS

Motor Horsepower	1 HP
Motor Amps	7
Motor Volts	120V, 60 Hz
Motor Speed (Variable)	1,750 RPM
Wheels Diameter	8”
Wheels Stone Width	1-1/2”
Wheels Stone Grits	60 & 120
Wheels Arbor	5/8”
Overall Length	20”
Overall Width	10-5/8”
Overall Height	15-1/2”
Overall Base Size	9-1/2” x 6-1/2”
Cord Size	6’
Overall Net Weight	60 lbs.
Warranty	5 Years

Metal Working Machinery & Accessories

RIKON 8″ Low Speed Bench Grinder

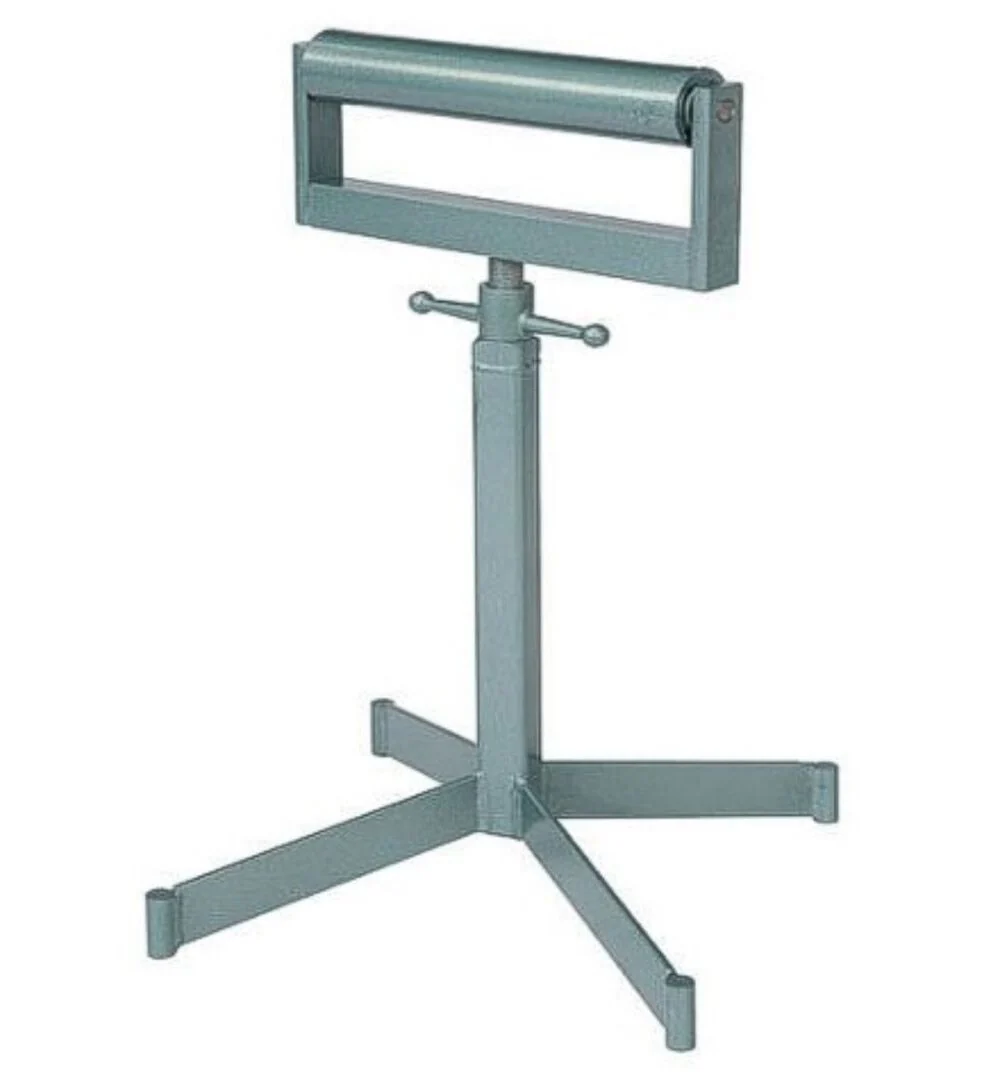

ELLIS Single Stock Support Stand w/ 1 Roller

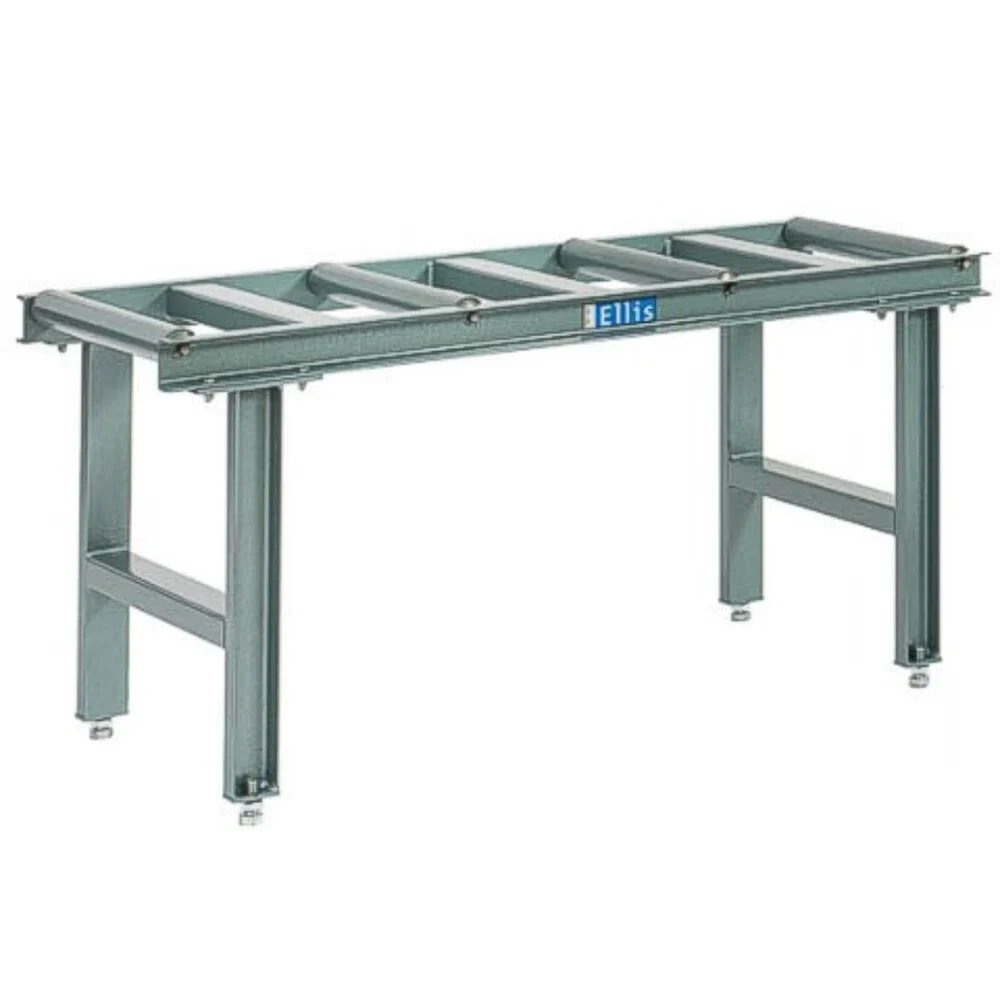

ELLIS 5' X 20" Stock Support Stand w/ 4 Rollers For 1600, 1800, & 2000

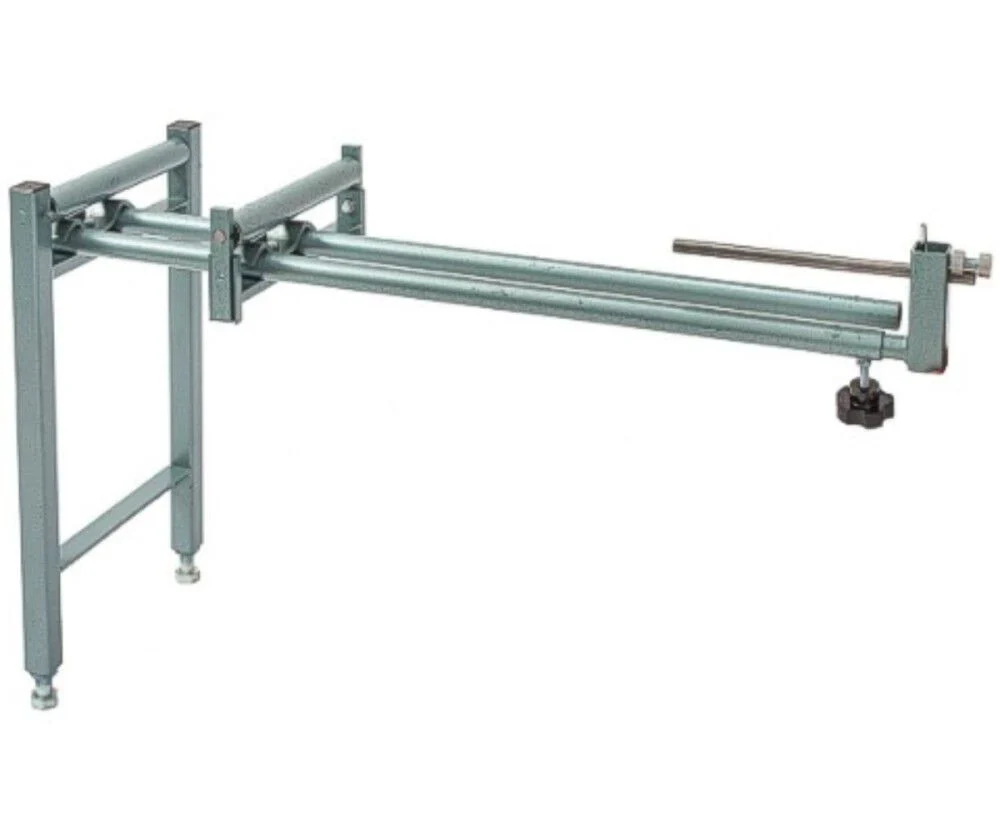

ELLIS 2 Roller Support Stand w/ Stock Gauge & Micro-Adjuster

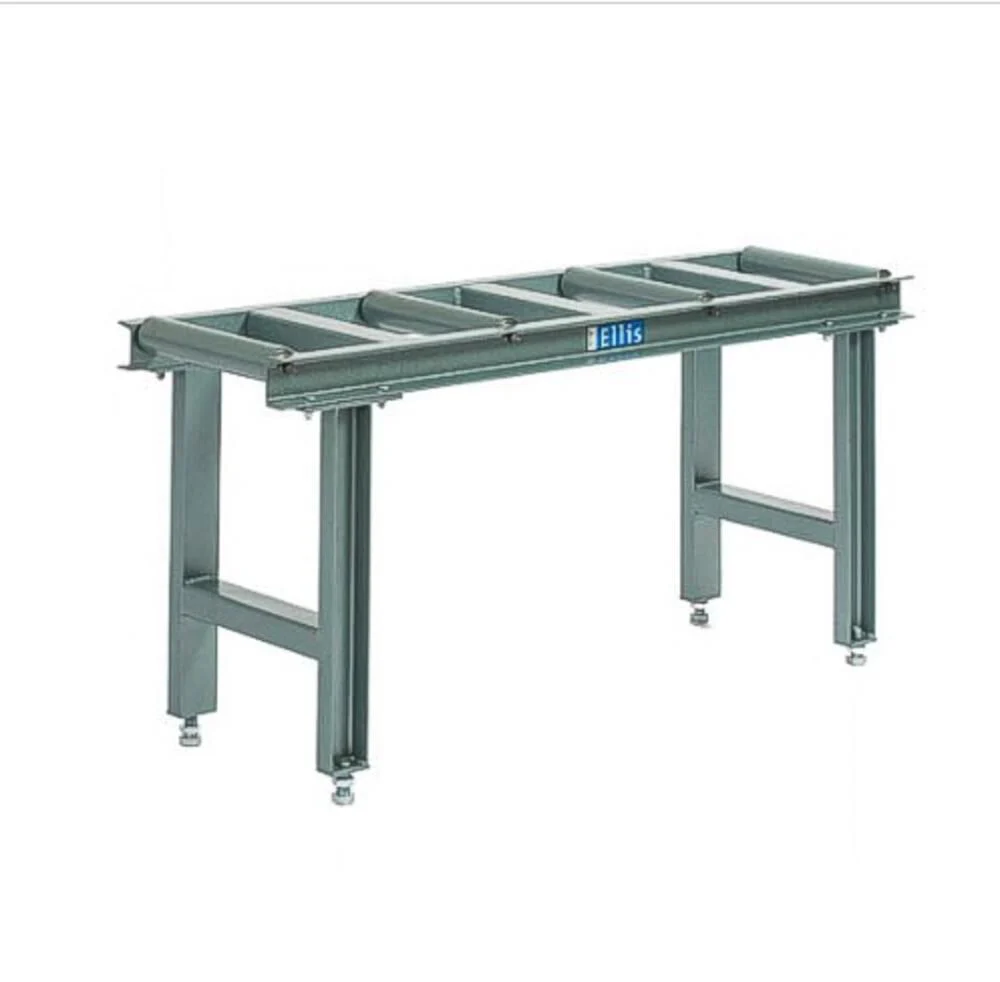

ELLIS 5' X 12" Stock Support Stand w/ 4 Rollers For 1600 & 1800
